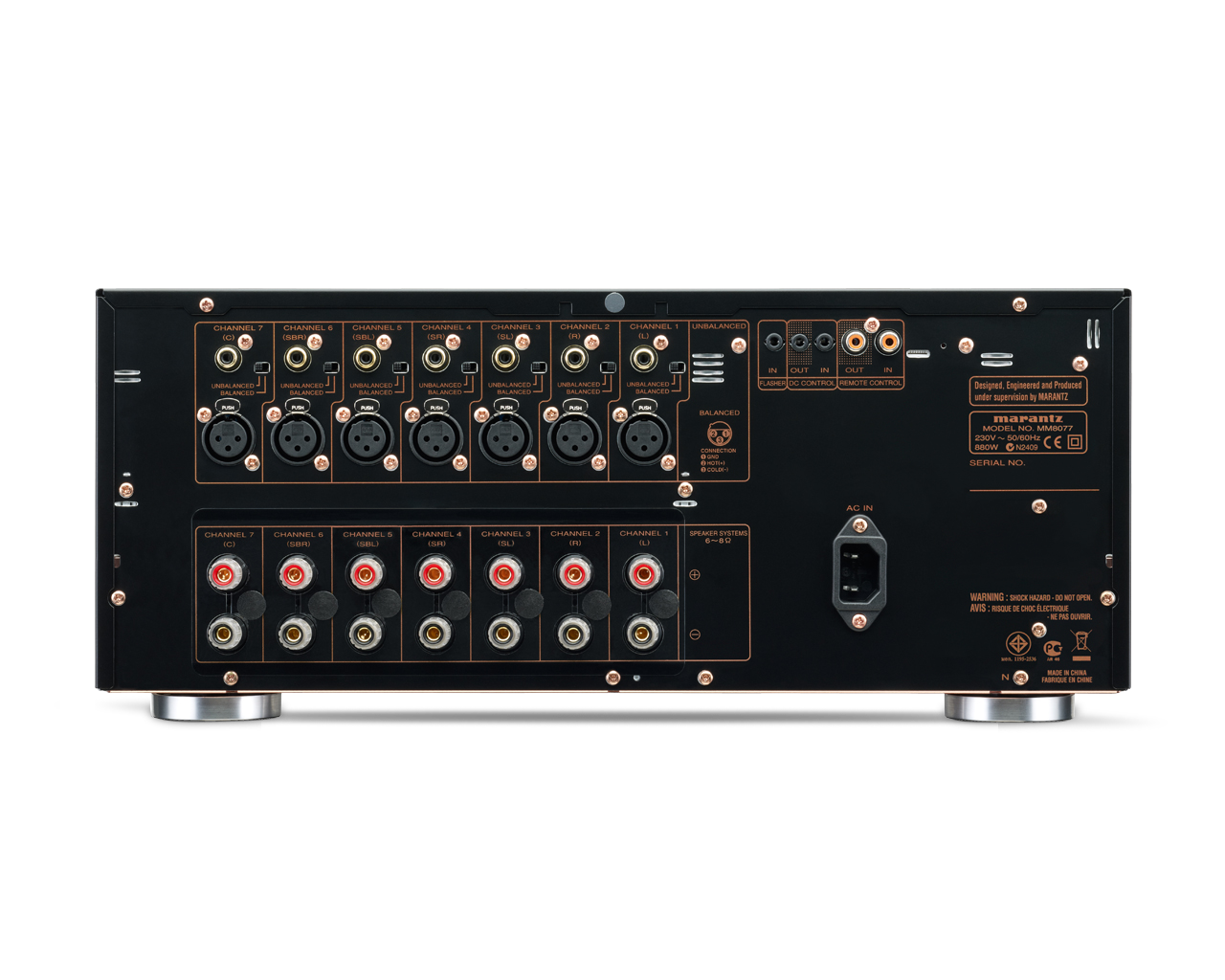

MM8077 N1B

MM8077 N1B

Designed for the ultimate music and movie surround sound experience, the MM8077 7-channel power amplifier is equipped with the same amplifier technologies that are incorporated in our reference class hi-fi amplifiers, including our unique current feedback discrete power amplifier stage design, which features a high slew rate that provides a wide bandwidth for the utmost enjoyment of today’s high resolution audio formats. All output stages feature identical topology for uniform high quality sound across all channels, and the MM8077 provides the option to choose between balanced (XLR) and unbalanced (RCA) inputs for each channel, for maximum system configuration flexibility. High current, high bandwidth discrete power transistors can handle short term musical bursts with aplomb, even into difficult low impedance speaker loads.

Main Features

  • 7x 150W (8 ohm), 7x 180W (6 ohm) RMS power (20Hz-20kHz)
  • Current feedback discrete power amplifier
  • High current power supply with toroidal power transfomer
  • Marantz reference-grade power supply filter capacitors and high speed, high current discrete power transistors
  • Low impedance continuous drive capability
  • Highest sound quality design based on pure surround philosophy
  • Copper plated chassis
  • Gold plated, high grade speaker terminals
  • Flasher input, DC trigger (in/out), Remote control (in/out)
  • Available in Black

Clean And Consistent Power

The power supply features a high current toroidal power transformer along with high power (71WVDC) filter capacitors with a total 100,000µF capacitance to easily handle sharp short-term transient peaks.

Ultimate Powerhouse

Designed for the ultimate music and movie surround sound experience, the Marantz MM8077 7-channel power amplifier delivers power and detail, and is rated at 150 watts per channel into 8 ohms, and 180 watts per channel into 6 ohms.

Power The Most Demanding Of Systems

Designed for the ultimate music and movie surround sound experience, the Marantz MM8077 7-channel power amplifier delivers power and detail, and is rated at 150 watts per channel into 8 ohms, and 180 watts per channel into 6 ohms.

Toroidal Transformer Power Supply

The power supply features a high current toroidal power transformer along with high power (71WVDC) filter capacitors with a total 100,000µF capacitance to easily handle sharp short-term transient peaks.

Featuring Our Unique Current Feedback

Featuring our unique current feedback discrete power amp output stages that are identical for all channels, the MM8077 is equipped with multiple high current discrete power transistors that feature high slew rate and wide operating bandwidth to extract the most detail from today’s high resolution audio formats.

Masterfully Built

The output devices are mounted on our unique dual extruded aluminum alloy heat sink assembly, configured in a tunnel arrangement that provides both passive and active cooling. The massive heat sinks feature multiple ribbed fins that provide a large passive cooling area, and the assembly is book-ended with a whisper quiet fan that automatically kicks in to provide near silent active cooling when the soundtrack heats up. As the fan is mounted internally directly to the heat sinks, and not externally to the chassis cover as is often the case, even when it’s running, it’s designed to be whisper quiet.

Features

Number of Channels 7
Current Feedback Topology Yes
Discrete Amplification Yes
Power Transformer Toroidal
Chassis Copper Plated



Specifications

Power Output 150W (20Hz-20kHz, 0.08%)
S/N Ratio 105dB
Freq. Response (Analog In) 8Hz-100kHz (+/- 3dB)

General

Color Black
Front Panel Aluminum/Glass-reinforced resin
Power Requirement AC 120 V, 60 Hz
Power Consumption 800W (Standby: 0.4W)
Dimensions W x H x D (Inchs) 17.32" x 7.29" x 15.1"
Weight (lbs) 45.41
