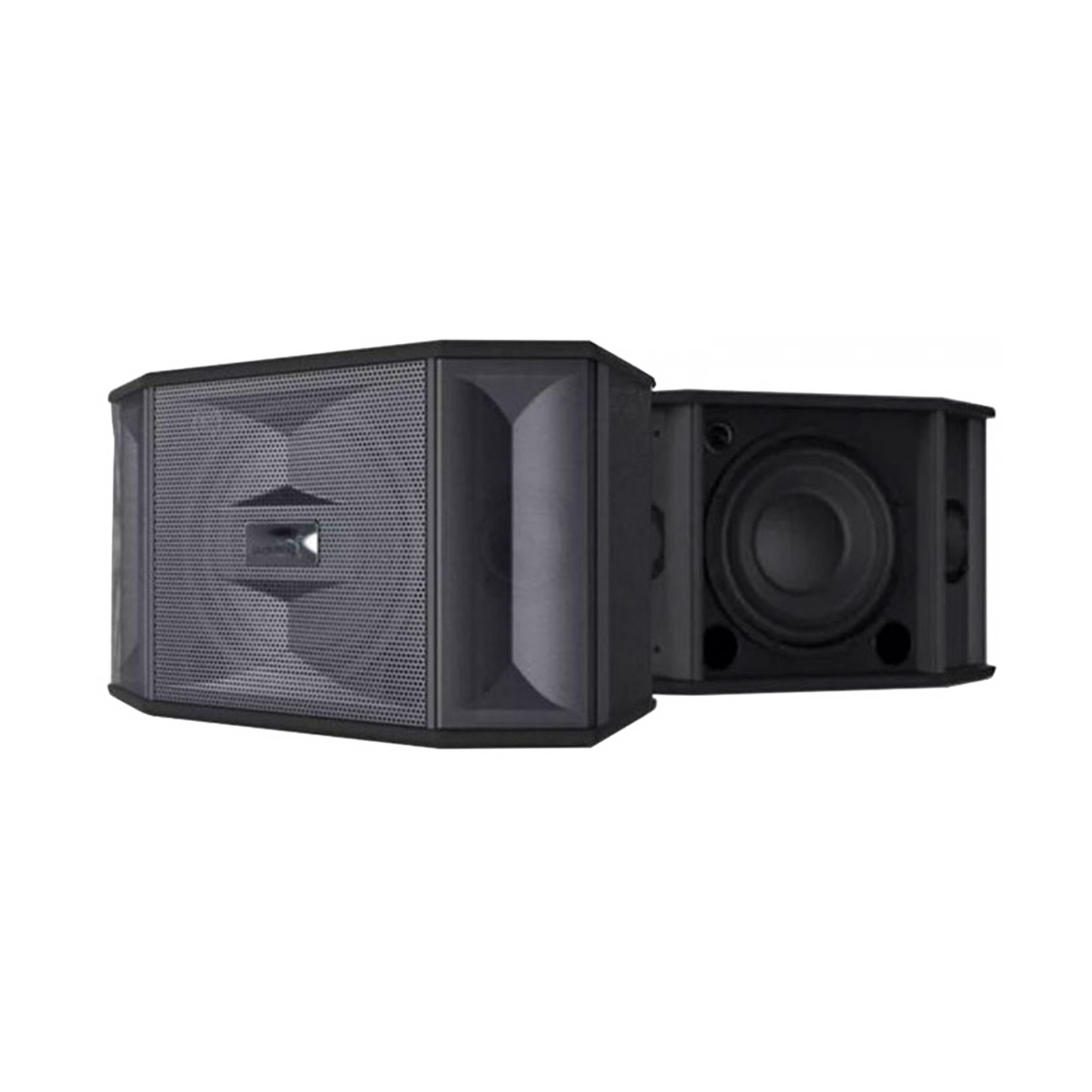

AUDIOFROG M12F 3-Way 5-Speaker Monitor

AUDIOFROG M12F 3-Way 5-Speaker Monitor

Regular price RM4,899.00 MYR Sale

The 2-way M12F features dual 3” high-frequency drivers and dual 3” midrange drivers for coverage across a wide range of seating positions and a 12” woofer in a vented enclosure for maximum low frequency extension and high efficiency. An adjustable high frequency control allow the response to be adapted to the room or adjusted for listener preference. The M12F features an integrated 2-way passive crossover with a second order high pass filter and first order low pass filter for a smooth transition from midrange to high frequencies. 5-way binding post connectors make connections simple using bare wires or banana plugs

  • 12” Paper Cone Woofer for High Efficiency
  • Dual 3” Paper Cone High Frequency Drivers for High Efficiency
  • Dual 3” Paper Cone Midrange Drivers for High Efficiency and Increased Vocal Presence
  • Integrated 1.7 kHz Passive Crossover (12dB/Octave High Pass Filter, 6dB/oct Low Pass Filter)
  • High Frequency Trim Control
  • Dual Ports
  • 5-Way Binding Post Terminal
  • Integrated Metal Mesh Grilles
  • Rugged Vinyl Enclosure Finish
  • Wall, Stand or Ceiling Mountable (Hardware Not Included)



  • Description: 3-Way 12” (300mm) Loudspeaker
  • Recommended Amplifier RMS Power: 35 – 300 Watts
  • Power Handling (Continuous /Peak): 50 / 500 Watts
  • Nominal Impedance: 6 Ohms
  • Sensitivity (2.83V/1M): 92dB
  • Frequency Response (-3dB):: 35Hz – 20kHz
  • Crossover Frequency: 1700 Hz
  • High Frequency Transducers: Dual 3″ (75mm) cone, moving coil
  • Midrange Transducers: Dual 3” (75mm) cone, moving coil
  • Low Frequency Transducer: 12” (300mm) cone, moving coil
  • Baffle: Low Diffraction
  • Enclosure Type: Tuned, Vented
  • Crossover Network: 12dB/Oct High Pass, 6dB/Oct Low Pass
  • Terminals: Gold Plated, screw terminal
  • Dimensions (H x W x D): (460mm x 705 mm x 433 mm)
  • Weight: 20.5 kg (gross) / 18.1 kg (net)
