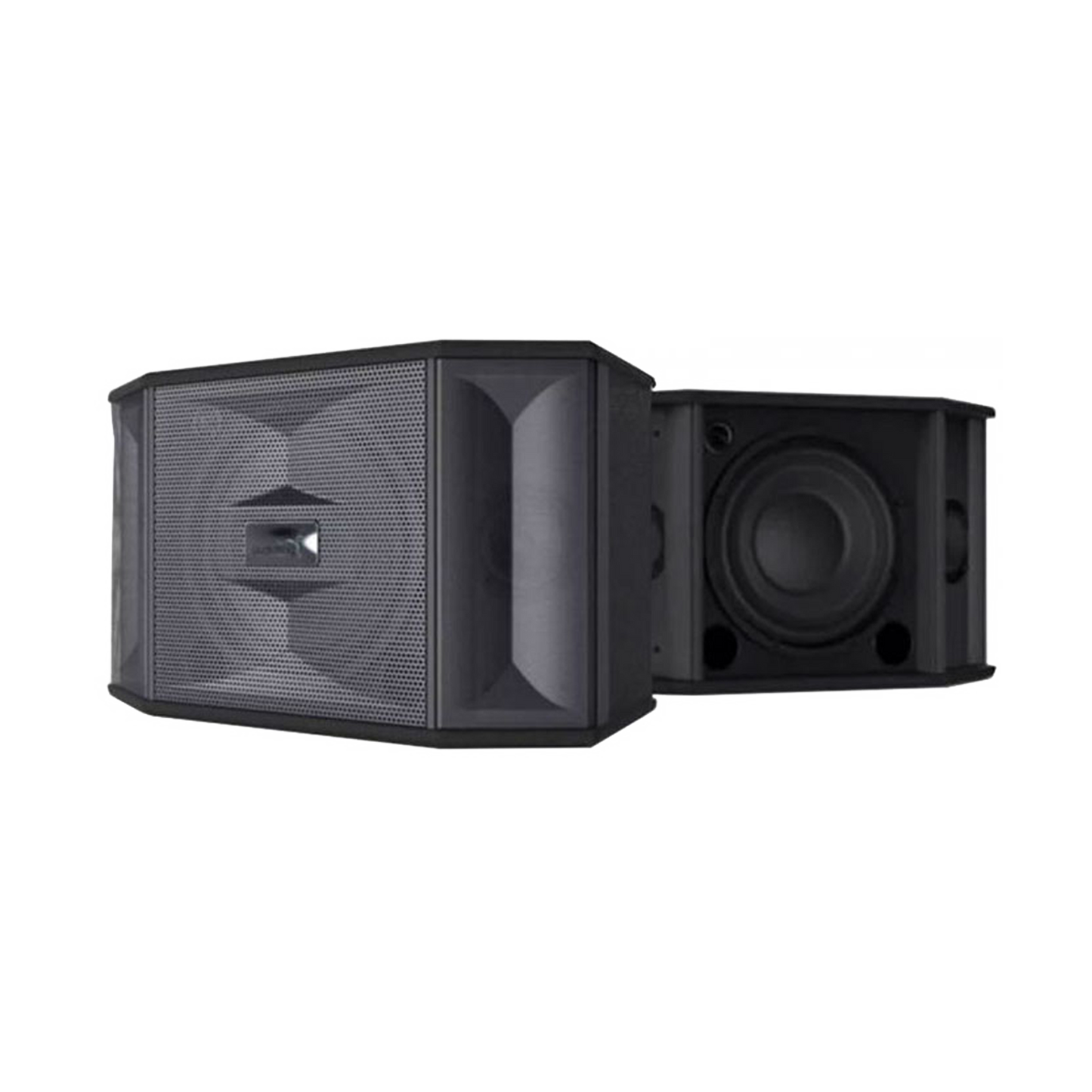

AUDIOFROG M10F 2-Way 3-Speaker Monitor

AUDIOFROG M10F 2-Way 3-Speaker Monitor

OVERVIEW

The 2-way M10F features dual 3” high-frequency drivers for coverage across a wide range of seating positions and a 10” woofer in a vented enclosure for maximum low frequency extension and high efficiency. An adjustable high frequency control allow the response to be adapted to the room or adjusted for listener preference. The M10F features an integrated 2-way passive crossover with a second order high pass filter and first order low pass filter for a smooth transition from midrange to high frequencies. 5-way binding post connectors make connections simple using bare wires or banana plugs.

DIMENSIONS

M10F-DimensionsWEB

FEATURES

  • 10” Paper Cone Woofer for High Efficiency
  • Dual 3” Paper Cone High Frequency Drivers for High Efficiency
  • Integrated 3 kHz Passive Crossover (12dB/Octave High Pass Filter, 6dB/oct Low Pass Filter)
  • High Frequency Trim Control
  • Dual Ports
  • 5-Way Binding Post Terminal
  • Integrated Metal Mesh Grilles
  • Rugged Vinyl Enclosure Finish
  • Wall, Stand or Ceiling Mountable (Hardware Not Included)
TECHNICAL DETAILS





SPECIFICATIONS
  • Description: 2-Way 10” (250mm) Loudspeaker
  • Recommended Amplifier RMS Power: 35 – 200 Watts
  • Power Handling (Continuous /Peak): 50 / 400 Watts
  • Sensitivity (2.83V/1M): 92dB
  • Frequency Response (-3dB):: 45Hz – 20kHz
  • Crossover Frequency: 2500 Hz
  • High Frequency Transducers: Dual 3″ (75mm) cone, moving coil
  • Low Frequency Transducer: 10″(250mm) cone, moving coil
  • Baffle: Low Diffraction
  • Enclosure Type: Tuned, Vented
  • Crossover Network: 12dB/Oct High Pass, 6dB/Oct Low Pass
  • Terminals: Gold Plated, screw terminal
  • Dimensions (H x W x D): (412mm x 626mm 326mm)
  • Weight: 15.5 kg (gross) / 14.1 kg (net)
