MM7055 N1B

Name: MM7055 N1B
Brand: K-Way Karaoke Malaysia
Price: 6999.00 MYR
Availability: InStock

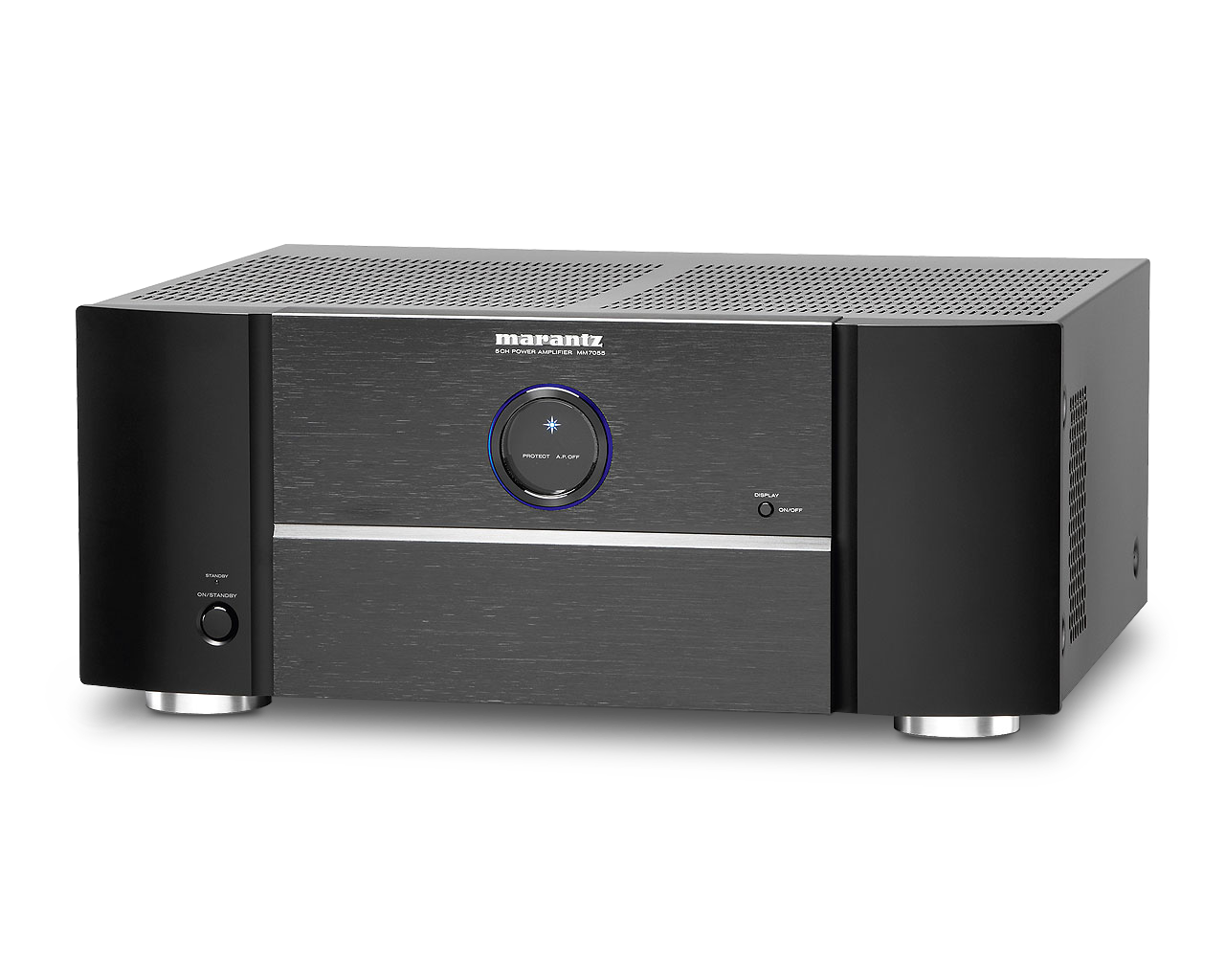

MM7055 - Multichannel Main Amplifier

The new MM7055 is the five-channel option in this year’s extended line-up of main amplifiers. Based on the technology used in the MM8003 and using the exact same chassis, it delivers a thumping 140W rms into 8 ohm to each of the channels, while the ultra-wide bandwidth current feedback technology easily handles the highest SACD frequencies – this also makes it ideal for the high definition DTS Master Audio and Dolby TrueHD formats too. The result? Totally precise tonal and image balance, speed and dynamics. And on top of all that, you also get XLR audio inputs, DC triggers and a Marantz control bus system for remote on/off. This is power and convenience to take your breath away.

Current Feedback Discrete Power Amplifier

This model is equipped with a current feedback amplifier section that uses the same push-pull circuit found in Marantz's SM-11S1 Hi-Fi power amplifier. This amp is designed to provide increased operating stability, and high-speed, wide-ranging, high-density playback. The current/voltage conversion amplification section in the latter part of the power amp is equipped with a Wilson current mirror circuit that amplifies to the high sound range with low distortion.

Large Power Transformer

The final stage of the power amp is equipped with the same LAPT (high-efficiency power transistor) that is installed in the SM-11S1 Marantz Hi-Fi power amp, providing improved instant power supply capability. The power section is equipped with a large-sized transformer. As one of the essential parts of the power section, this unit is equipped with a notable Marantz 33,000 μF / 71 V×2 block condenser. These improvements to the power supply are engineered to provide a powerful and presence-filled sound.

High-Quality Design

This amplifier is equipped with a chimney-shaped heat sink to efficiently process the heat emitted from each channel along with quiet cooling fans. A high-sensitivity temperature sensor IC is used to control the cooling fans, adjusting the rotation speed to match the amount of heat generated by the amp.

Balanced and Unbalanced Inputs

For installation flexibility and maximum compatibility, each channel on this amplifier is equipped with balanced and unbalanced inputs.

Custom-Installation-Ready

This amplifier has an IR flash input that supports custom installations and DC trigger input and output terminals.

Remote Power Control

When a Marantz AV pre-amplifier/process such as the AV8003 or AV7005 is connected to this unit, this amplifier's power can be switched On/Off together with the pre-amplifier's power supply. This connection is designed to reduce sonic interface as much as possible.

MAIN FEATURES

• 5ch power amplifier
• 5x 140W (8ohm) / 5x 170W (6ohm)
• Current Feedback circuitry
• High performance power supply
• XLR inputs
• DC Trigger control inputs

Additional Features

Marantz reference-grade filter capacitors and high-speed output transistors
Gold-plated, high-grade loudspeaker terminals
Flasher input, DC trigger input/output, and RC-5 remote control connectivity
Detachable power cord (IEC320 2-pin type)
Porthole display with blue illumination accent
High instantaneous peak current design
Low impedance continuous drive capability

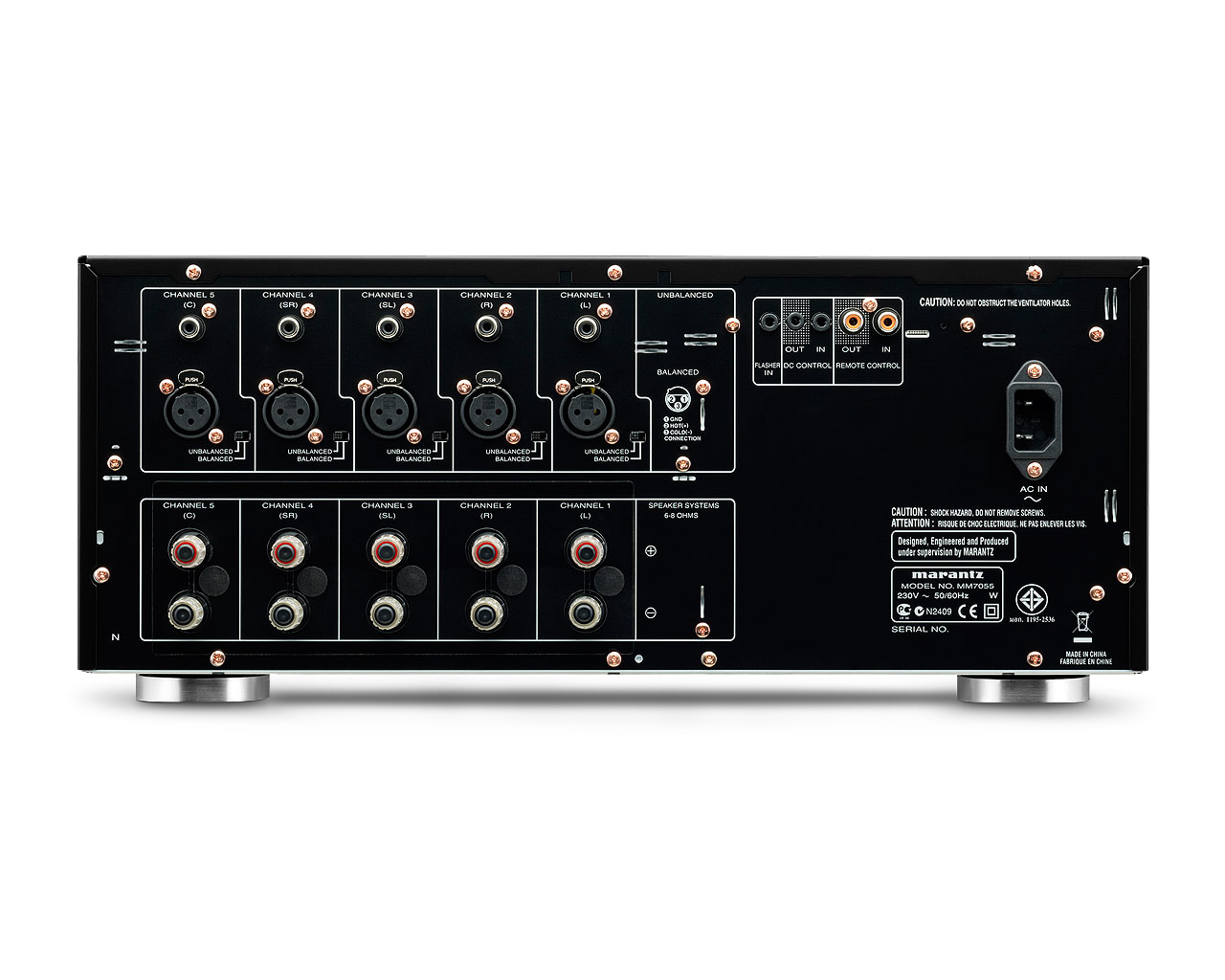

Flexible Connections

Balanced inputs and single-ended RCA inputs are both supported, and you can choose either type of input for each channel, individually, for easy and flexible connectivity. Audiophile grade, gold-plated four-way binding post speaker terminals insure tight connections to your choice of speaker wire.

Features

Number of Channels	5
THX	No
DTS	No
Dolby	No
DSD(SA-CD)/NEURAL	No
SRS	No
HDCD Decoder	No
Current Feedback Topology	Yes
Discrete Amplification	Yes
Power Transformer	Large Capacity EI
D/A Conversion	No
Digital Signal Processing	No
Video Off (Pure Direct)	No
Source Direct	No
Source Direct	Steel
Variable X-over	Steel
Display Off	Blue LED Illumination off mode available
Video Up-conversion	No
Auto Calibration by MIC	No
Satellite Radio Ready	No
AM/FM Tuner	No
Bass Redirection	No
Lip-sync (digital audio delay)	No
Software Upgradable	No

Specifications

Power Output	140W (20Hz-20kHz, 0.08%)
S/N Ratio	105dB
Freq. Response (Analog In)	8Hz-100kHz (+/- 3dB)
Freq. Response (Dig In)	No
Frequency Range	No
S/N Ratio (Mono/Stereo)	No
Frequency Range	No
S/N Ratio	No
Video Freq. Response (Component)	No
Video Freq. Response (Composit, S-Video)	No
Signal to Noise	No

General

Color	Black
Front Panel	Aluminum/Glass-reinforced resin
Remote Control	No
Power Requirement	No
Power Consumption	660W (Standby: 0.2W)
Dimensions W x H x D (Inchs)	17-3/8 x 7-3/16 x 15-1/8
Weight (lbs)	34.6
