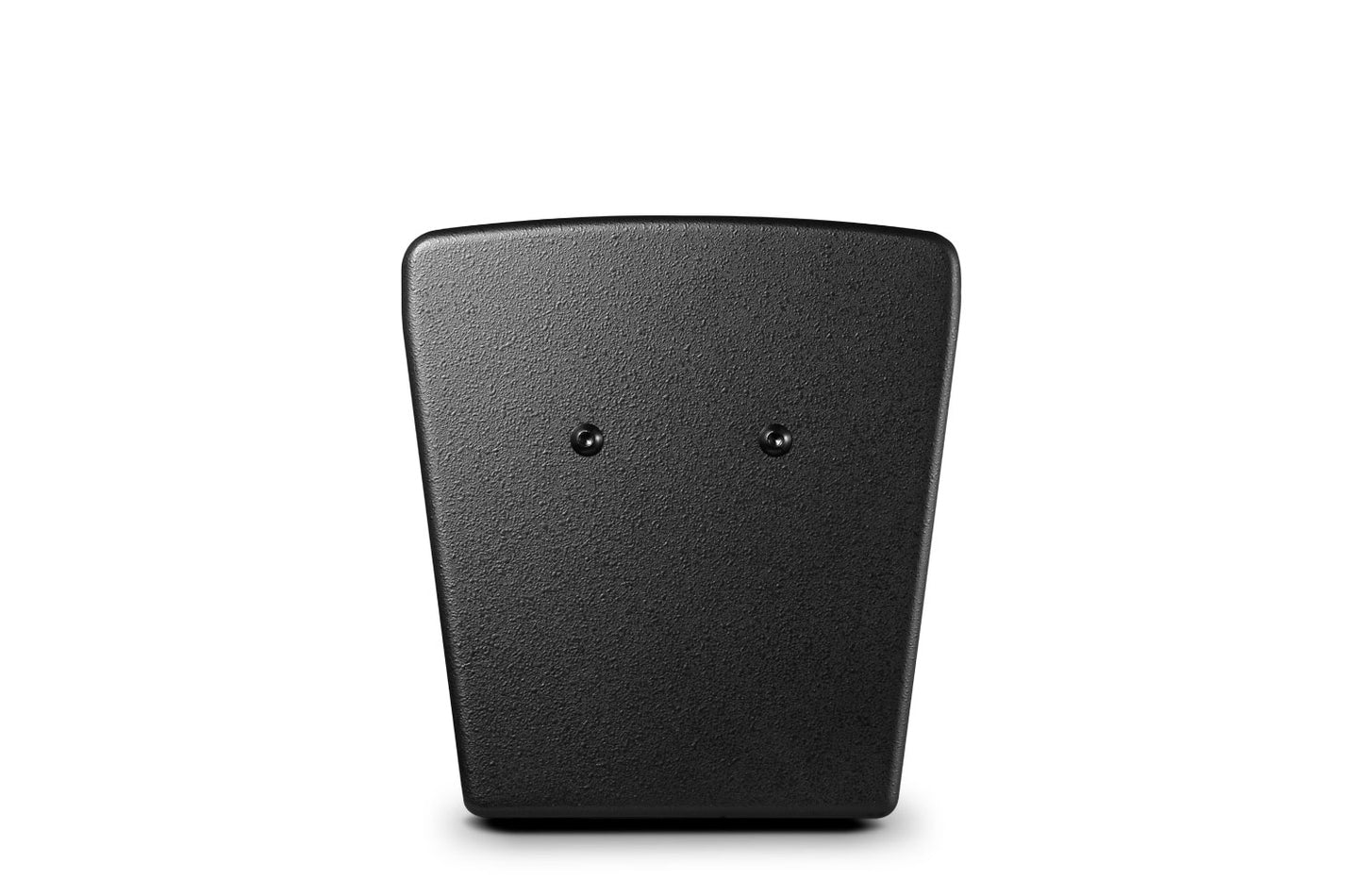

JBL MTS12 Loudspeaker System
JBL MTS12 Loudspeaker System
JBL MTS12 Loudspeaker System
JBL MTS12 Loudspeaker System
JBL MTS12 Loudspeaker System

JBL MTS12 Loudspeaker System

Regular price RM2,699.00 MYR Sale

12” Full-Range Loudspeaker System

MTS12 is a professional-grade 12” (304.8 mm) two-way speaker system designed for karaoke rooms. The two-way speaker combines a custom-made 12” woofer with a patent JBL 2414H-C compression driver, and stands itself out for high power handling, large dynamic, warm vocal ranges and extended low bands. Its 70° × 100° coverage pattern provides smooth and even coverage whether installed in vertical or horizontal orientation.

MTS12 is designed in a low profile and can easy blend into any karaoke room. The rugged enclosure is constructed of 15 mm high-quality MDF and finished in a durable coating. The front grille is made from 18-gauge steel and backed with acoustic fabrics for the protection of drivers and components inside. A Neutrik® Speakon® NL4MP connector is provided for reliable connection with a professional amplifier. To meet different installation requirements, three (3) pairs of M10 threaded suspension points and a 35 mm pole-mount socket are made available.


  • 12″ custom LF driver featuring high-power handling and extended low-frequency response
  • JBL patent compression HF driver for warm vocal reproduction in great detail
  • Enclosure constructed of 15 mm MDF with durable painting
  • 70° × 100° coverage pattern with a smooth response on and off-axis
  • 18-gauge steel front grille for protection of internal components
  • 35 mm pole-mount socket
  • Sound reinforcement for karaoke venues
  • Can be used with subwoofers


System Type 12″, 2-way, bass-reflex
Frequency Response (-10dB) 47 Hz - 20 kHz
Frequency Response (±3 dB) 80 Hz - 18 kHz
Sensitivity 95 dB
Nominal Impedance 8 Ohms
Maximum SPL (1m) 121 dB (127 dB peak)
Power Rating(Continuous/Program/Peak) 400 W/800 W/1600 W
Coverage Pattern 70° × 100° (H × V)
Dimensions (H x W x D) 599 mm × 347 mm × 370 mm 23.6 inch × 13.7 inch × 14.6 inch
Net Weight 18.6 Kg (41.0 lbs)
LF Driver 1 × 12″ (304.8 mm) woofer
HF Driver 1 × JBL 2414H-C
Input Connectors 1 × Neutrik® Speakon® NL4MP
