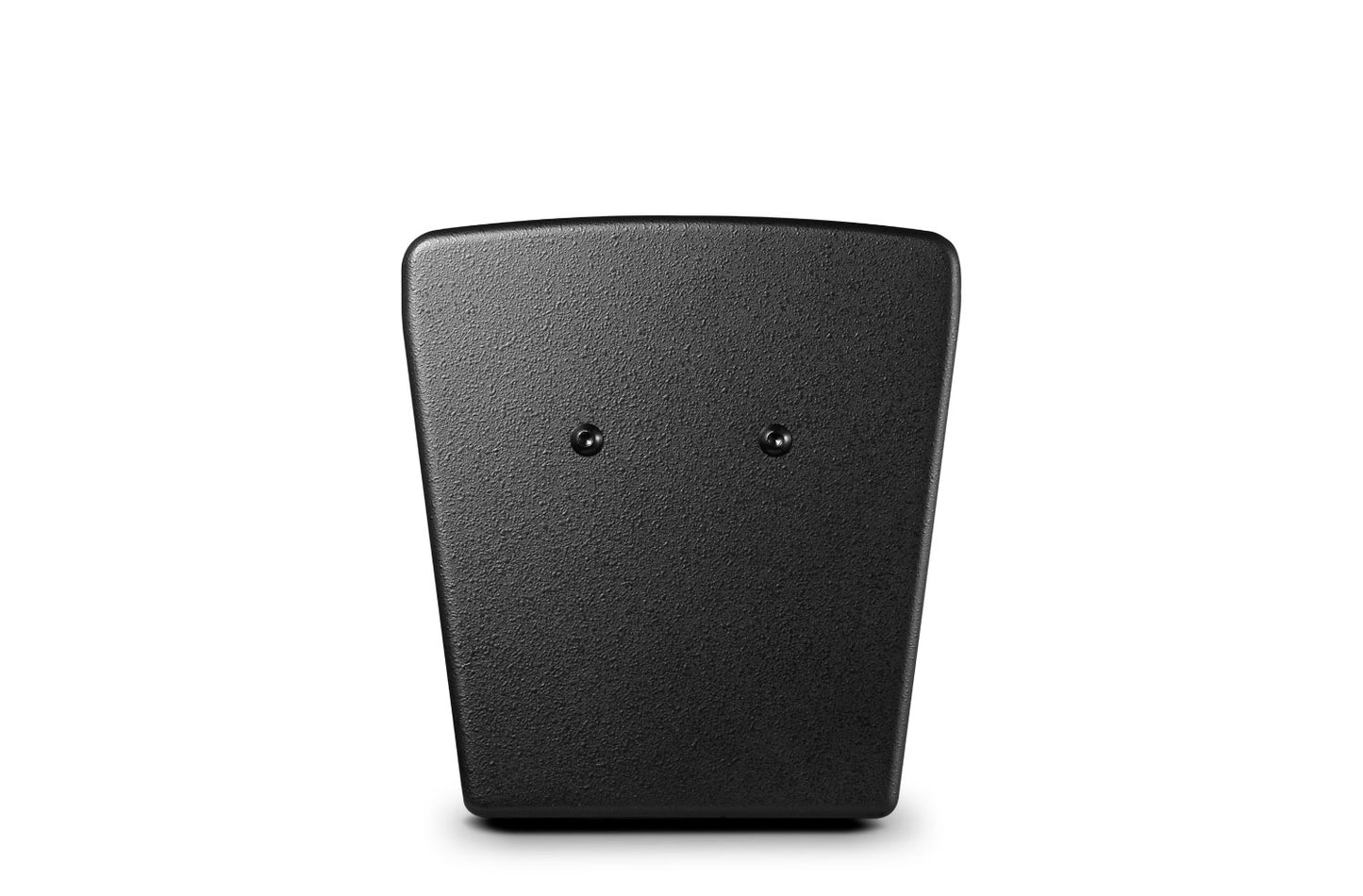

JBL MTS10 Loudspeaker System

JBL MTS10 Loudspeaker System

10” Full-Range Loudspeaker System

MTS10 is a professional-grade 10” (254 mm) two-way speaker system designed for karaoke rooms. The two-way speaker combines a custom-made 10” woofer with a patent JBL 2414H-C compression driver, and stands itself out for high power handling, large dynamic, warm vocal ranges and extended low bands. Its 70° × 100° coverage pattern provides smooth and even coverage whether installed in vertical or horizontal orientation.

MTS10 is designed in a low profile and can easy blend into any karaoke room. The rugged enclosure is constructed of 15 mm high-quality MDF and finished in a durable coating. The front grille is made from 18-gauge steel and backed with acoustic fabrics for the protection of drivers and components inside. A Neutrik® Speakon® NL4MP connector is provided for reliable connection with a professional amplifier. To meet different installation requirements, three (3) pairs of M10 threaded suspension points and a 35 mm pole-mount socket are made available.


Features

  • 10″ custom LF driver featuring high-power handling and extended low frequency response
  • JBL patent compression HF driver for warm vocal reproduction in great detail
  • Enclosure constructed of 15 mm MDF with durable painting
  • 70° × 100° coverage pattern with a smooth response on and off axis
  • 18-gauge steel front grille for protection of internal components
  • 35 mm pole-mount socket
  • Sound reinforcement for karaoke venues
  • Can be used with subwoofers
Specifications

System Type 10″, 2-way, bass-reflex
Frequency Response (-10dB) 50 Hz - 20 kHz
Frequency Response (±3 dB) 85 Hz - 18 kHz
Sensitivity 94 dB
Nominal Impedance 8 Ohms
Maximum SPL (1m) 119 dB (125 dB peak)
Power Rating (Continuous/Program/Peak) 300 W/600 W/1200 W
Coverage Pattern 70° × 100° (H × V)
Dimensions (H x W x D) 524 mm × 297 mm × 320 mm20.6 inch × 11.7 inch × 12.6 inch
Net Weight 14.2 Kg (31.3 lbs)
LF Driver 1 × 10″ (254 mm) woofer
HF Driver 1 × JBL 2414H-C
Input Connectors 1 × Neutrik® Speakon® NL4MP
ENCLOSURE CONSTRUCTION Trapezoid, 15 mm, MDF
