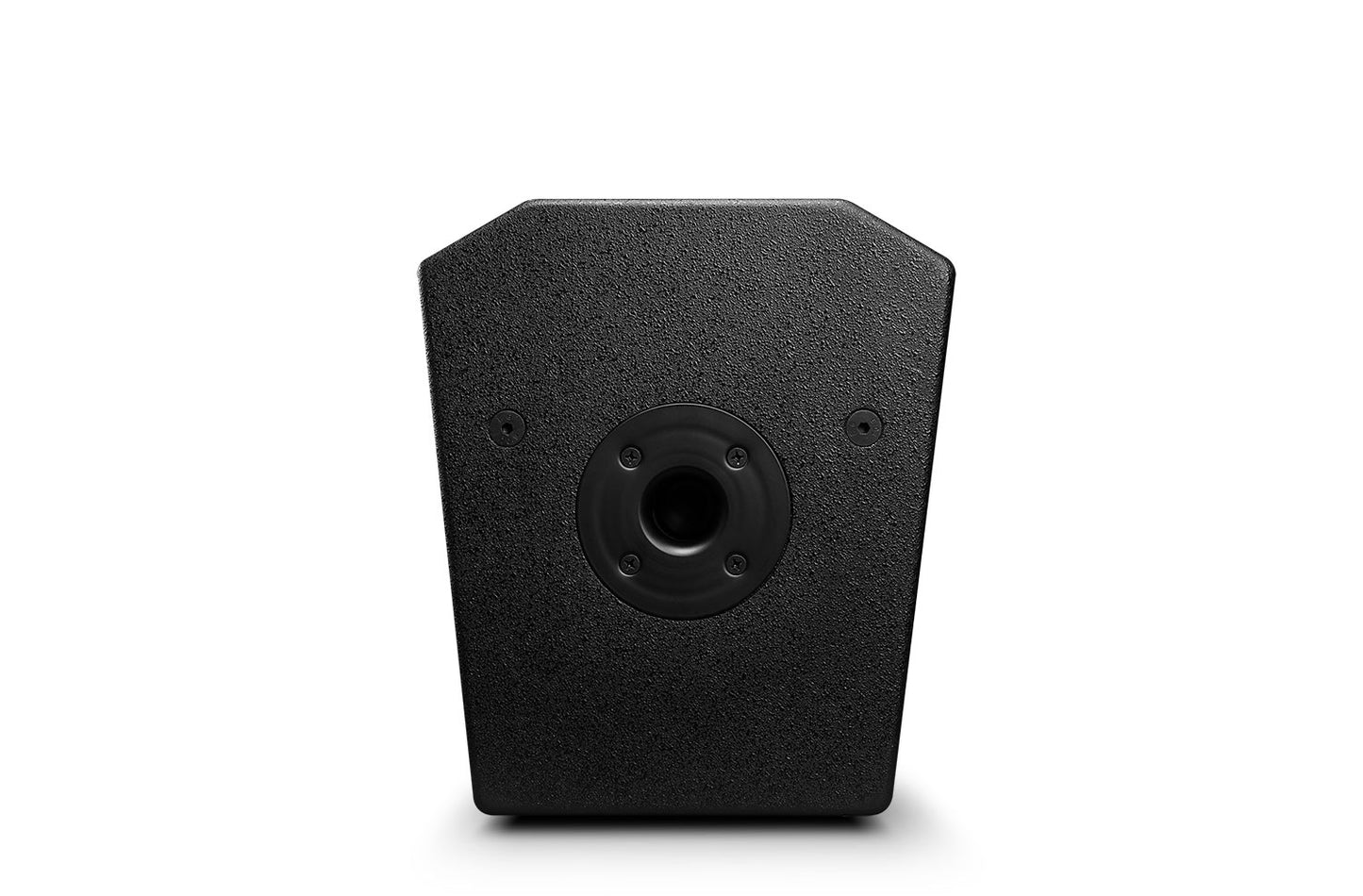

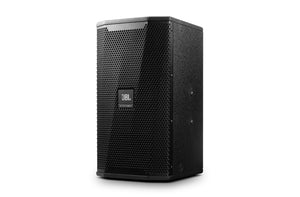

JBL KPS1 Loudspeaker System
JBL KPS1 Loudspeaker System
JBL KPS1 Loudspeaker System
JBL KPS1 Loudspeaker System

JBL KPS1 Loudspeaker System

Regular price RM2,899.00 MYR Sale

10” Two-Way Full-Range Speaker System

KPS1 is a 10” two-way full-range speaker system designed for sound reinforcement at karaoke lounges and nightclubs.

The two-way system uses a 10” (254 mm) woofer equipped with an optimum demodulating/cooling ring, and a 1” (25.4 mm) 2414H NdFeB magnet high-frequency compression driver, therefore, is capable of reproducing powerful music and pristine vocal in high fidelity and volume. A high-order passive network eliminates band overlap and brings subtle vocal details into full play. Whenever the speaker is positioned in landscape or portrait mode, the 70° × 100° (H × V) horn ensures smooth and even coverage across the entire space.

KPS1 constructs its trapezoid enclosure from 15 mm premium quality board and improves its internal structure and transducer layout after rounds of simulations and tests. Multiple high-strength suspension points and an OmniMount socket are available for either flying installation or pole mounting of the system. To protect the system from human damage and drink splash, dent-free steel backed with acoustically transparent cloth is used for the grille. Convex edges slant through the front grille, enhancing the aesthetic appeal of the piece and making it easier to blend with any room décors. New identification of JBL speakers, the luminous JBL logo by PSL (Passive Sound Lighting) technology will be constantly on when an audio signal is present and is adjustable to fit different installation orientations.


  • Specially designed 10” woofer with demodulating aluminum ring for high power handling, low distortion, and minimum power compression
  • JBL 2414H NdFeB magnet HF compression driver for clear and accurate midrange vocal rendering
  • 70° × 100° (H × V) coverage pattern for even and smooth response on and off-axis
  • Stylish front grille design for a neutral blend with different room décors
  • Rotatable JBL lighting logo to fit different installation orientations
  • Multiple suspension points for flying installation
  • OmniMount socket for pole mounting
  • Sound reinforcement for karaoke lounges and nightclubs
  • High-performance satellite speaker for use with subwoofers



Frequency Response (-10dB) 50 Hz - 20 kHz
Frequency Response (±3 dB) 85 Hz - 19 kHz
Coverage Pattern 70° × 100° (H × V)
System Power Rating 300 W / 600 W / 1200 W (continuous / program / peak)
Maximum SPL (1m) 120 dB continuous average (128 dB peak)
System Sensitivity 95 dB
Nominal Impedance 8 Ohms
LF Driver 1 × 10″ (254 mm) wooferr
HF Driver 1 × 2414H (1″ or 25.4 mm) Dome Polymer Diaphragm NdFeB magnet Compression Driver
Enclosure Trapezoidal, 15 mm board
Suspension Attachment 13 points, M10 threaded hardware; 35mm OmniMount pole mount socket
Finish Textured paint, black
Grille Powder-coated, 1.2 mm perforated steel, with acoustically transparent black cloth backing
Input Connector 1 × NL4 Neutrik Speakon®
Dimensions (H x W x D) 537 × 300 × 340 mm
Net Weight 15.6 kg
