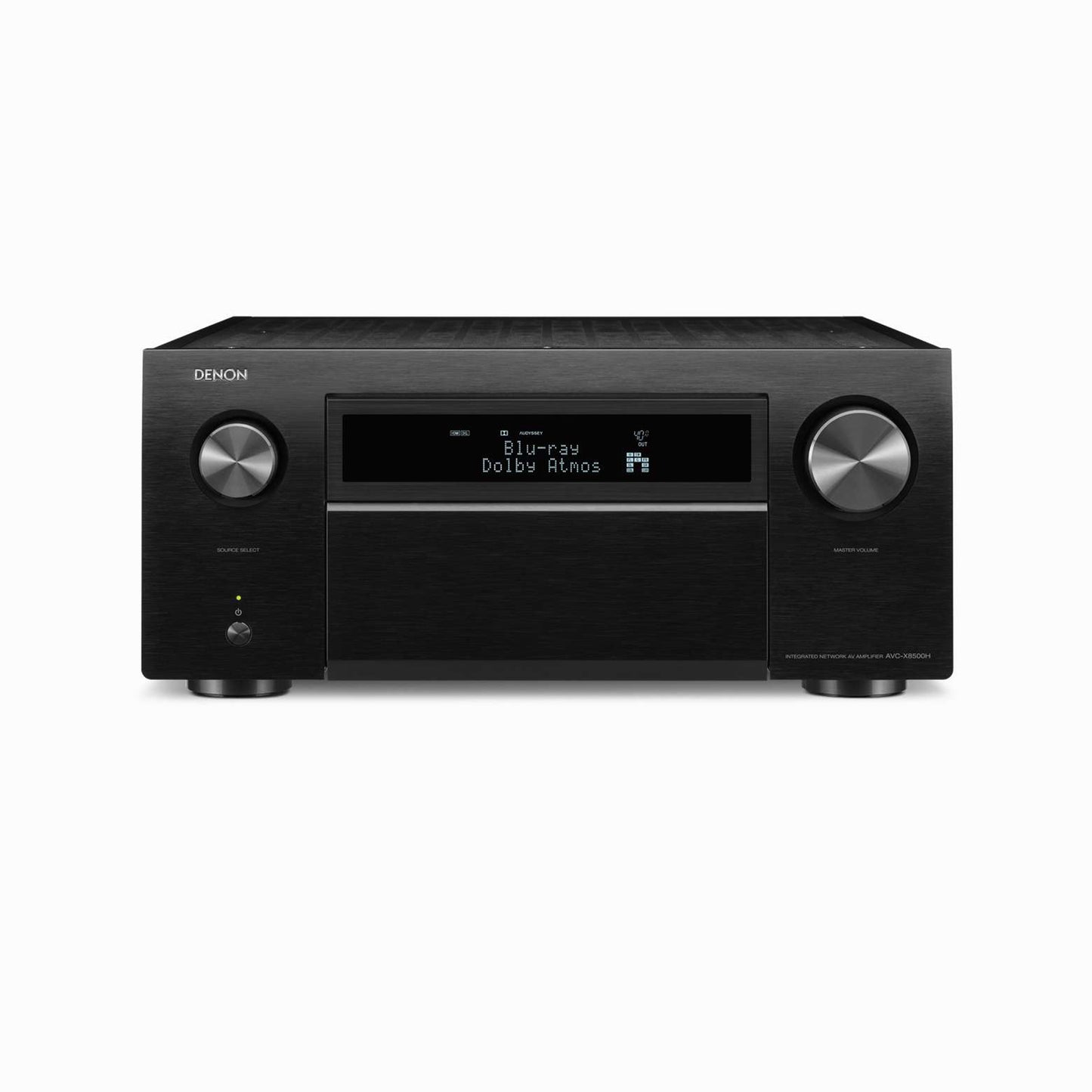

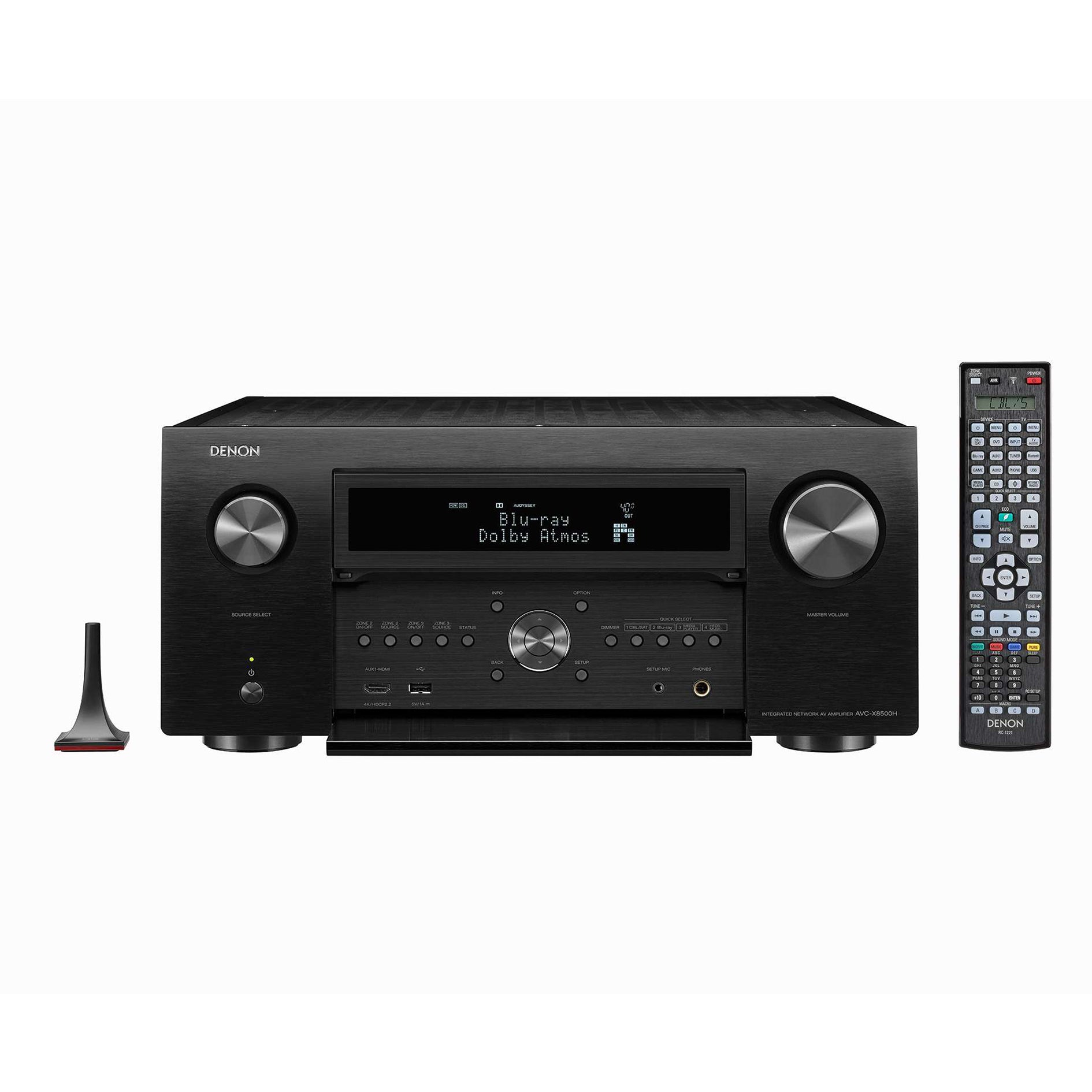

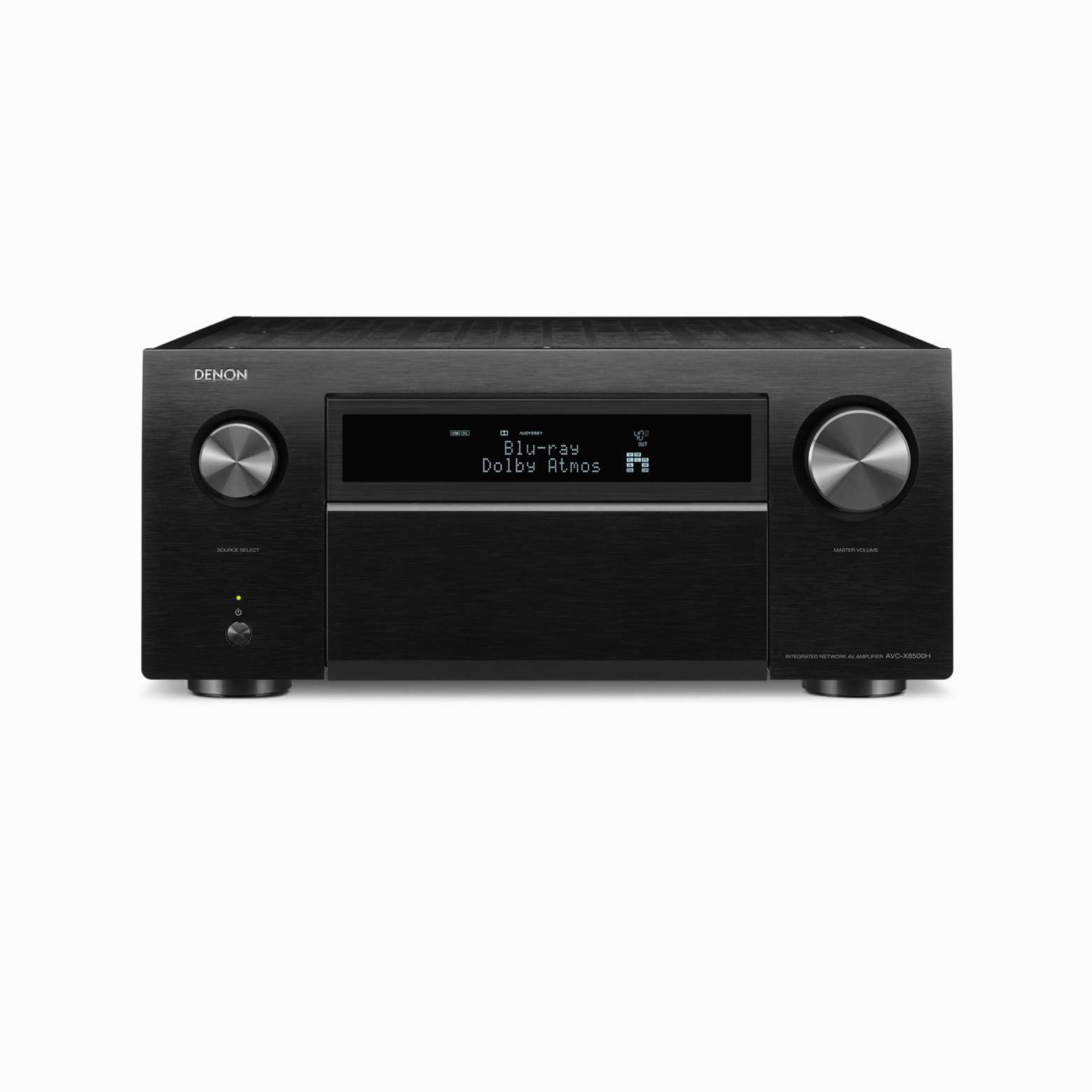

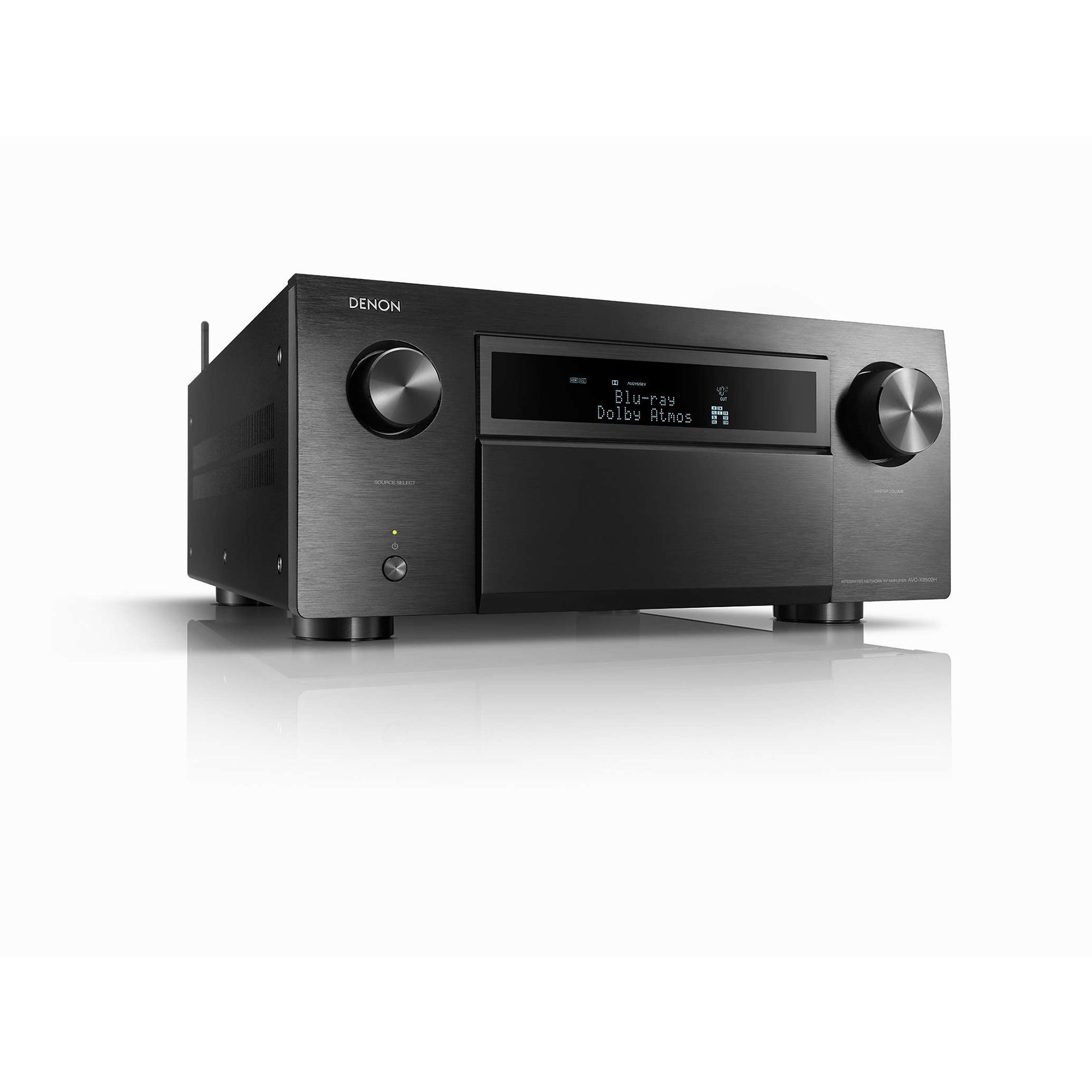

DENON AVC-X8500H BKE2

13.2ch 4K Flagship AV Amplifier with HEOS Built-in

The Denon Flagship AVC-X8500H powers the next generation of home theatre with the world’s first 13.2 channel amplifier that supports the latest immersive audio formats, including IMAX Enhanced, Dolby Atmos, DTS:X, DTS:X® Pro and Auro-3D® and unparalleled music playback options, thanks to our HEOS Built-in technology, Apple AirPlay2, and Amazon Alexa voice compatibility for seamless sound.

Blockbusting 3D sound

Surround yourself in cinema-grade sound from literally any direction.
Geared up for 4K

Enjoy ultra-high-definition pictures, even from analogue and digital SD sources.
Connect with ease

Get your AVC-X8500H up and running in no time, perfectly tailored to your needs.
Extraordinary sound

Experience extraordinary sound quality from both music and movies.

TECHNICAL SPECIFICATIONS

Multichannel Surround

IMAX Enhanced	Yes
DTS HD Master / DTS:X	Yes / Yes
DTS Neo:X / DTS Neural:X	No / Yes
DTS Virtual:X	Yes (update)
Dolby TrueHD / Dolby Atmos	Yes / Yes
Dolby ProLogic II / Dolby Surround	No / Yes
Auro 3D	Yes
Multichannel Stereo	Yes
Max Number of Processing (Preamp) Channels	13.2

Sound Enhancements

Mono Block Power Amp Construction	Yes (L/R separated)
Discrete Power Amplifier	13
D.D.S.C. HD Digital	Yes (32 bit)
Pure Direct	Yes
High Grade Audio Components	Yes
Gold Plated RCA Terminals	Yes
Clock Jitter Reducer	Yes
Alpha Processing	AL32 Processing Multichannel
Denon Link HD	Yes
Audyssey	MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume	Yes / Yes
Audyssey LFC	Yes
Audyssey APP Support	Yes
Compressed Audio Restorer	Yes

Network

HEOS Multiroom and Streaming	Yes
Lossy Formats: MP3 / WMA / AAC	Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV	Yes / Yes / Yes
DSD Audio Streaming	up to DSD5.6
FLAC HD 192/24	Yes
WAV 192/24	Yes
ALAC 192/24	Yes
Gapless playback	Yes (FLAC, WAV, ALAC, DSD)
AirPlay Audio Streaming	Yes
Internet Radio	TuneIn
Spotify Connect* / Tidal* / Deezer* / others *	Yes / Yes / Yes / Yes
Compatible with Remote APP for Smart Phones	Android / iOS
Compatible with Remote APP for Tablets	Android / iOS/Amazon Kindle
Ethernet Ports	Yes
Wi-Fi	Yes
Bluetooth	Yes
AirPlay 2	Yes (update)

HDMI

HDMI Inputs: Back / Front	7 / 1
HDCP 2.2 support	Yes
HDMI Outputs: Main / Zone	2 / 1
Video Conversion Analog -> HDMI	Yes
Analog to HDMI Scaling	up to 4K 60/50
HDMI to HDMI Scaling	up to 4K 60/50
GUI Overlay on HDMI	Yes
HDMI: 3D / 4K / CEC / ARC	Yes / Yes / Yes / Yes
Enhanced ARC	Yes
HLG / Dolby Vision	Yes / Yes
4K Signal Pass-through / Scaling / GUI Overlay	Yes / Yes / Yes
HDMI pass-though in standby mode	Yes
Picture Adjust / Noise Reduction	Yes / Yes
CEC	Yes
DSD Audio Capability	Yes
Audio Return Channel	Yes
Auto LipSync	Yes

Multi-room CI

HEOS Multiroom integrated	Yes
TV Sound grouping	Yes
Multi-Room Zones	3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog	Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout	Yes / Yes
Zone HDMI Output from HDMI Source	Yes
IP Control / RS232 Control / Web Control / App Control	Yes / Yes / No / Yes
Remote In / Out	Yes / Yes
DC Trigger Output	2

Others

Auto Speaker Setup by Microphone	Audyssey MultEQ XT32
FL Display	2 lines
Graphic User Interface - GUI	Advanced
ISF Certification	Yes
GUI Languages	9
Setup Assistant	Yes
Quick Select Plus / Quick Select	Yes / No
Firmware Update by: Network / USB	Yes / Yes
Variable Cross Over	Yes
Optimized Bass Redirection	Yes
Bass Sync	Yes
ECO Mode	Yes
Auto Power Off	Yes
Sleep Timer	Yes

Inputs Outputs

Composite In / Out	4 / 2
Component In / Out	3 / 1
HDMI In / Out	7+1 / 3
Multi-room Video Out: Video / HDMI	Yes / Yes
Analogue In/out	6+1 / No
Phono (MM) In	Yes
Digital In: Optical / Coaxial	2 / 2
Multi-room Out: Analog / Digital	2 / No
Multichannel Preout	Yes (15.2)
Subwoofer Out	2 (independent)
7.1 Multichannel Input	Yes
Speaker Terminal: Gold Plated Screw / Regular Screw	Yes / No
Number of Speaker Terminals	15
Speaker A/B / Bi-amp Drive / Multi-Room Speaker	assignable
Speaker A / B	assignable
Bi-amp Drive	assignable
Multi-Room Speaker Terminal	assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB	No / No / No / Yes / Yes
USB Audio / Made for iPod / Made for iPhone	Yes / AirPlay / AirPlay

Specifications

Number of Power Amps	13
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)	150 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)	190 W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive)	210 W

General

Available colours: Black / Premium Silver	Yes / Yes
Metal Front Panel	Yes

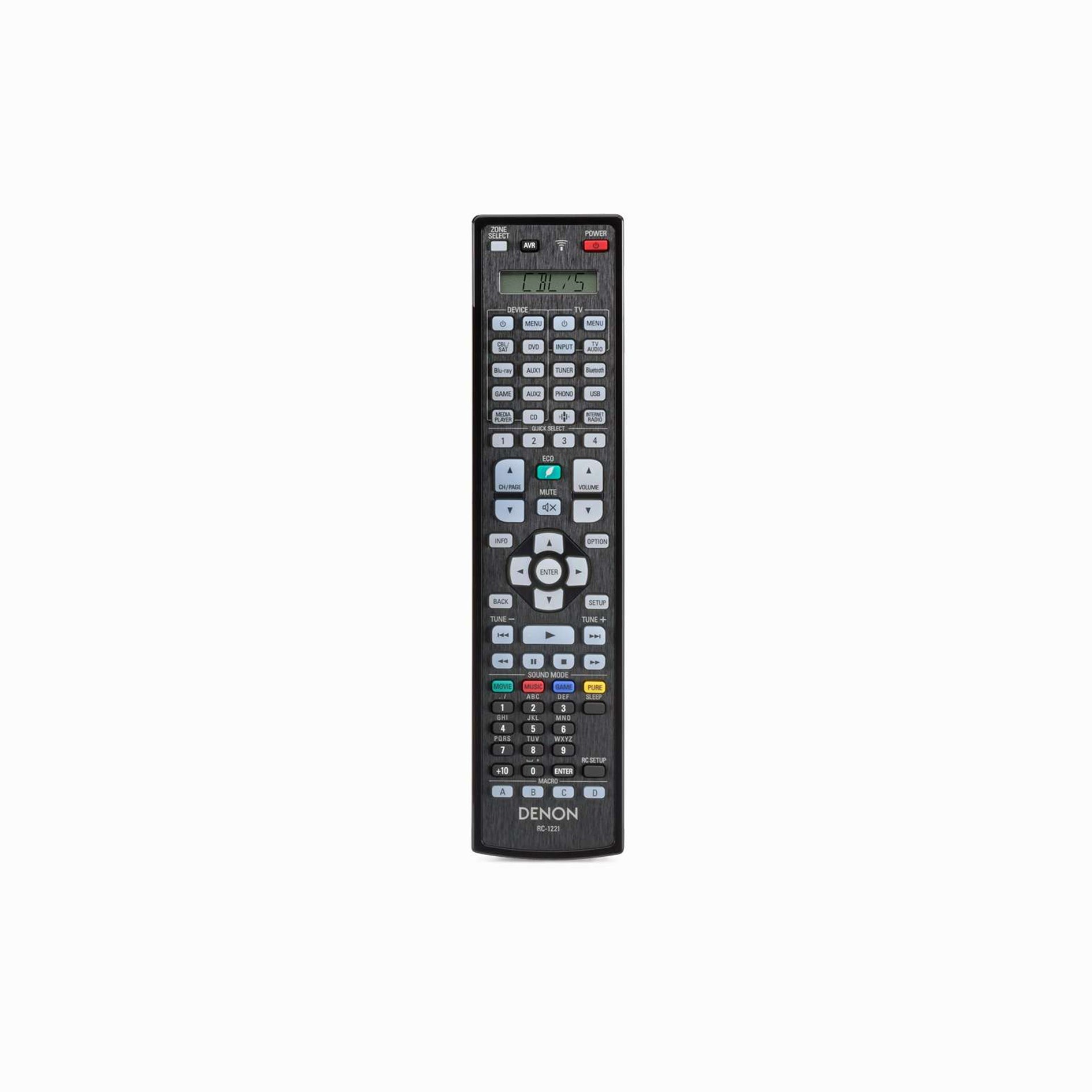

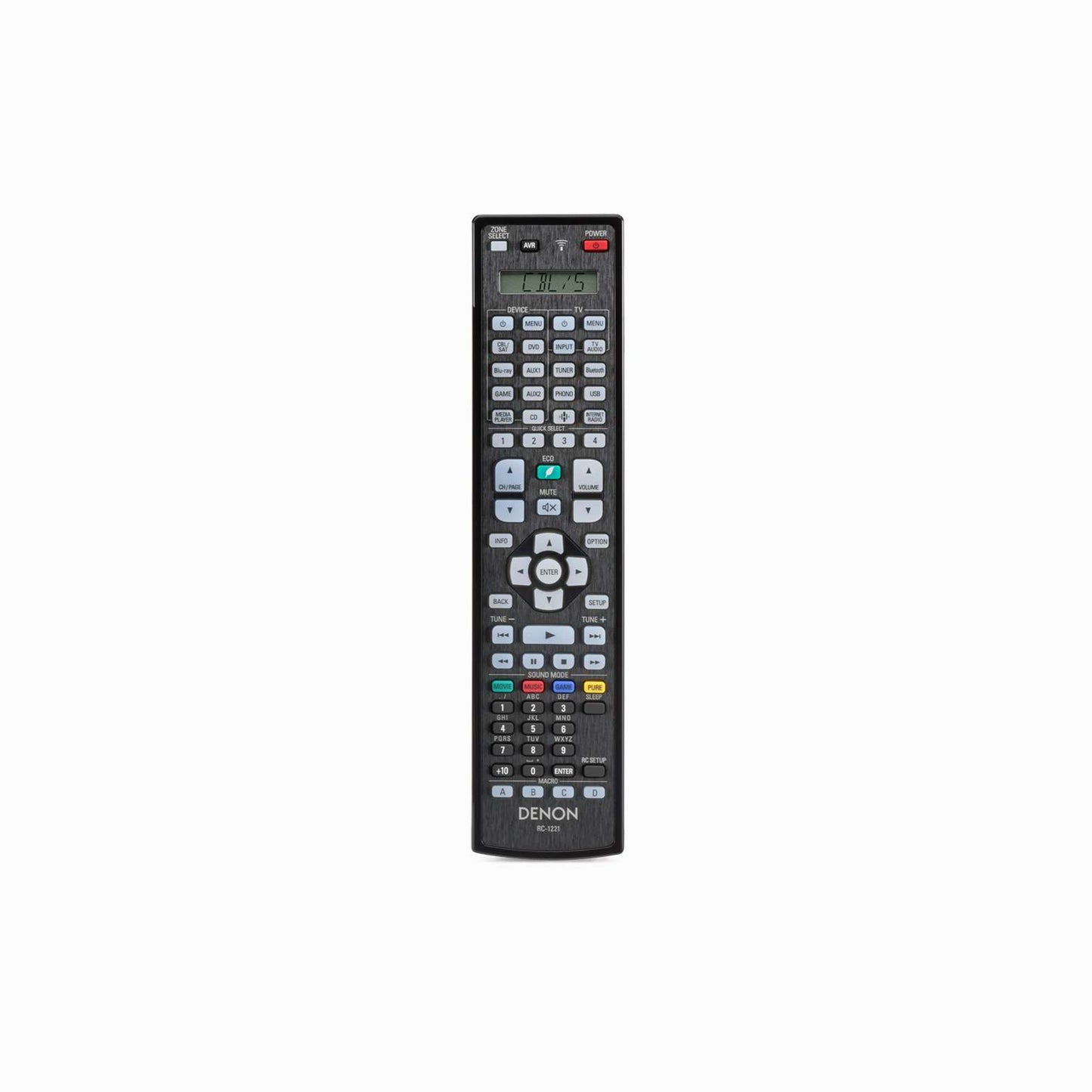

System Remote Control	RC-1221
Pre-programmed / Learnable / LCD Display	Yes / Yes / Yes
Power Consumption in W	900
Power Consumption No-Sound (ECO On / Off) in W	70 W / 125 W
Standby Consumption in W	0.1
CEC Standby Consumption in W	0.5
Network Control On Consumption in W	3.7
Maximum Dimensions Antenna: Horizontal: (W x D x H) in mm Antenna: Vertical: (W x D x H) in mm W/O Antenna: (W x D x H) in mm	434 x 482 X 195 (434 x 482 X 259) 【 434 x 472 x 195 】
Weight in kg	23.3
