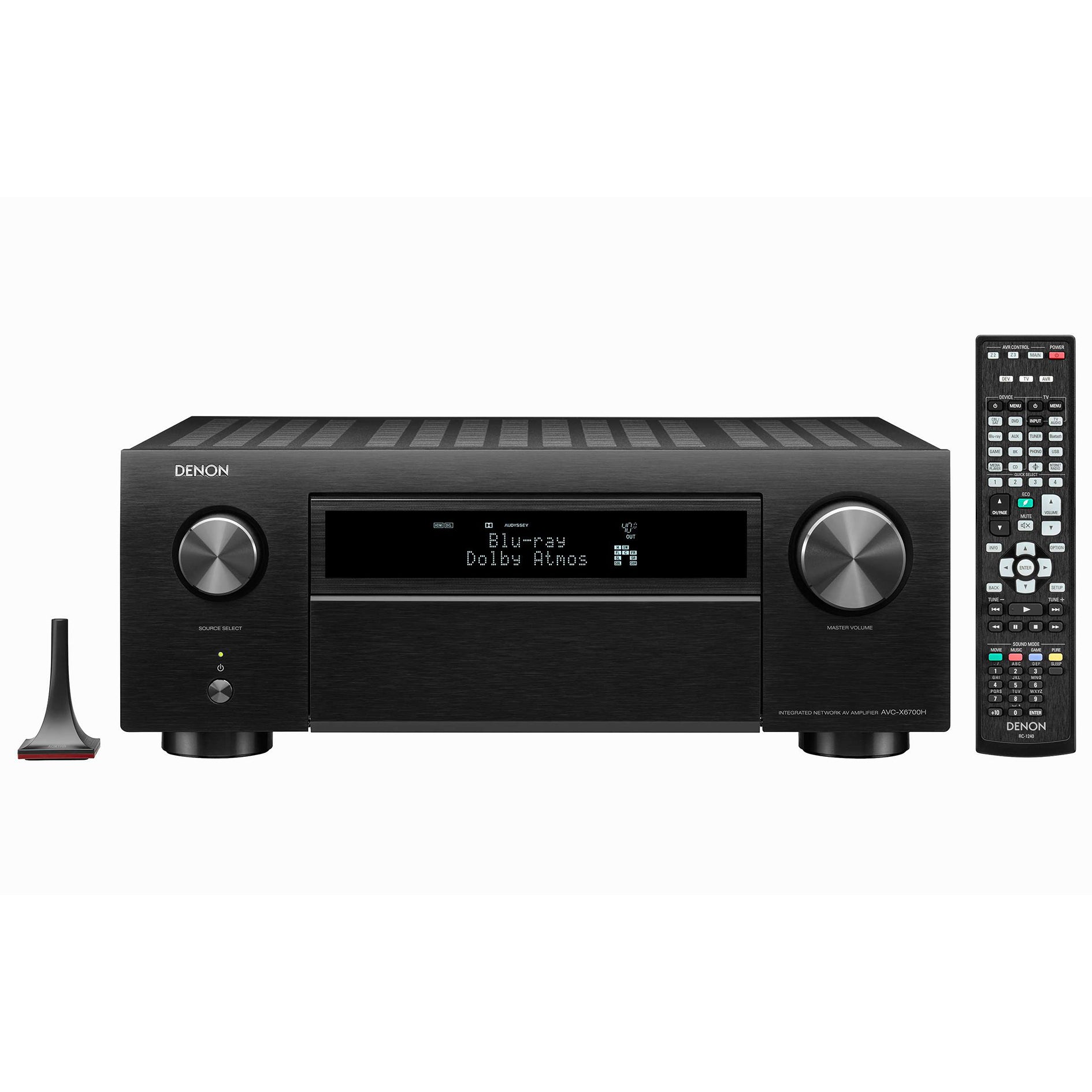

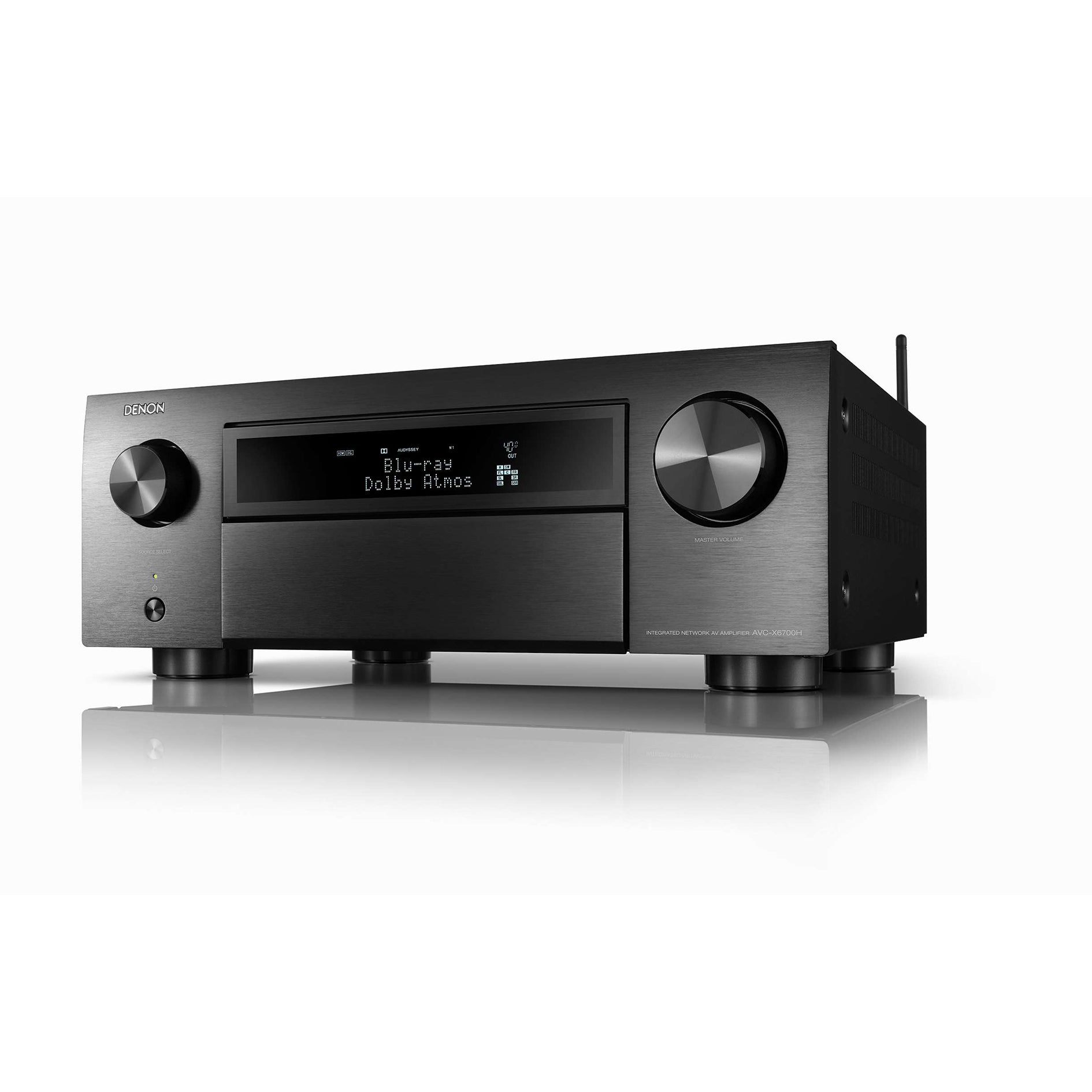

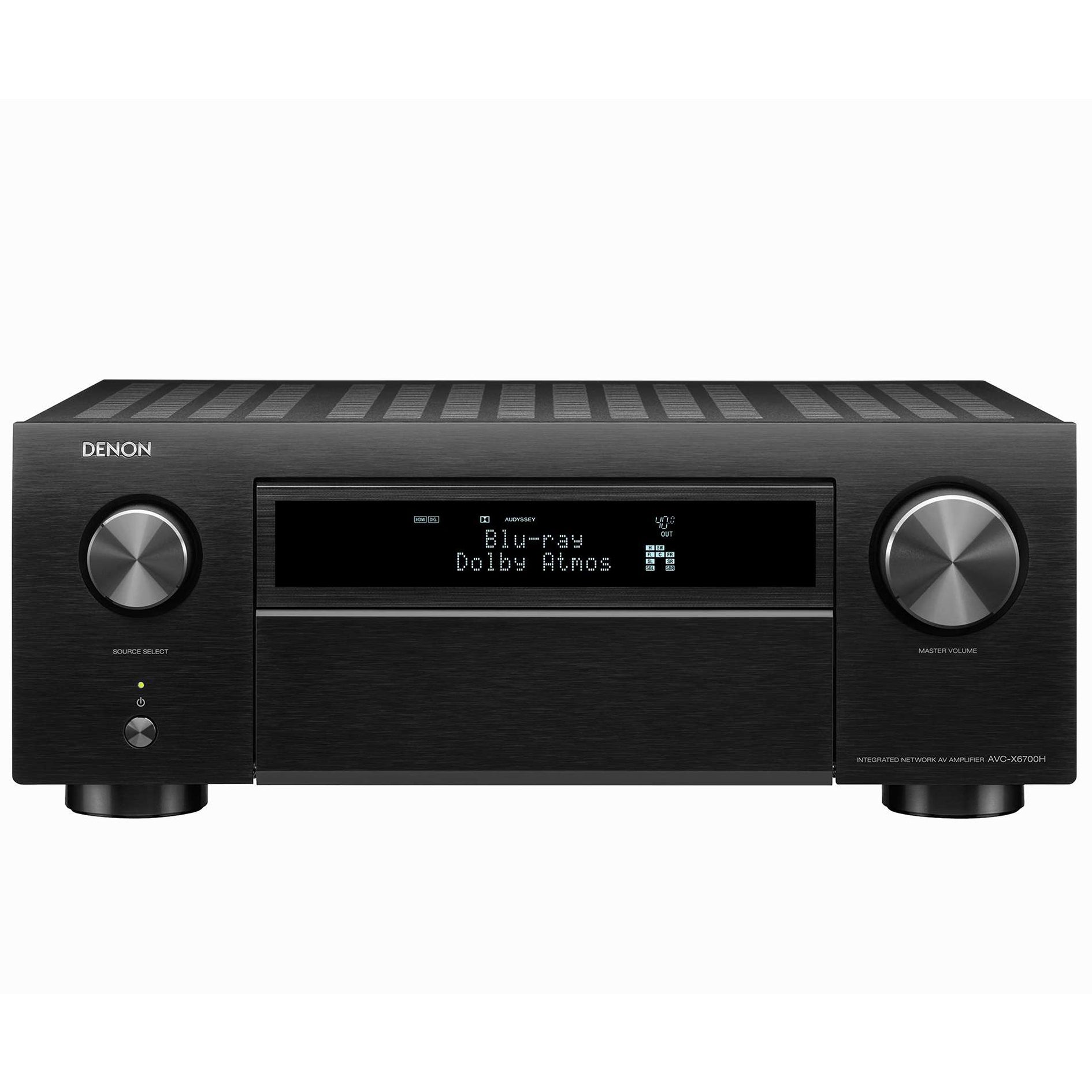

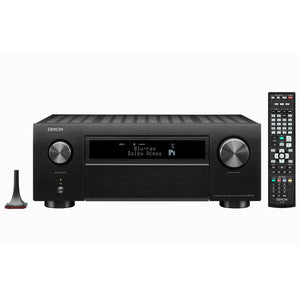

DENON AVC-X6700H BKE2

11.2 Ch. 8K AV Amplifier with 3D Audio, HEOS® Built-in and Voice Control

Premium 11.2 channel 8K AV amplifier with 205W per channel that fully supports 3D audio formats like Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:X™, DTS:X® Pro, IMAX® Enhanced and Auro-3D®. The AVC-X6700H also supports the latest HDMI specifications such as 8K/60Hz and 4K/120Hz pass-through, VRR, ALLM, Dynamic HDR, HDR10+ and eARC support.

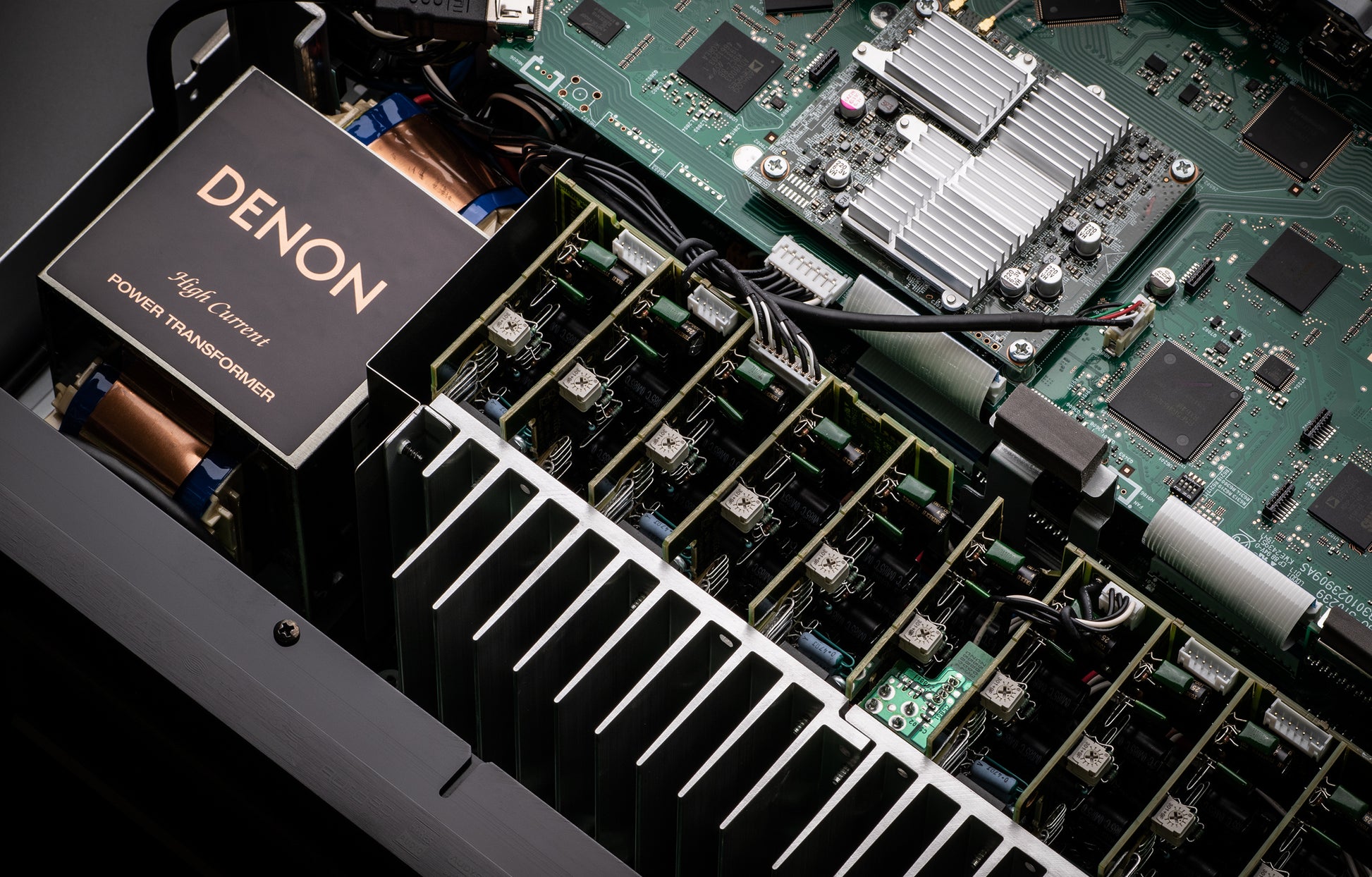

11 channels of pure power

Featuring a sophisticated power amplifier design to drive even the most demanding speakers.
Premium 8K experience

Discover your movies and games in unrivalled 8K quality.
Latest 3D audio
processing

Delivering the most advanced 3D sound for movies, games, and music while enhancing your existing audio-visual collection.
Gaming mastered

With 4K/120Hz passthrough, enjoy a lag-free and reduced latency gaming advantage.

TECHNICAL SPECIFICATIONS

Multichannel Surround

DTS HD Master / DTS:X	Yes / Yes
DTS:X Pro	Yes (Update)
DTS Neo:X / DTS Neural:X	No / Yes
DTS Virtual:X	Yes
Dolby TrueHD / Dolby Atmos	Yes / Yes
Dolby ProLogic II / Dolby Surround	No / Yes
Dolby Height Virtualization	Yes
Front Wide Speakers: Dolby / DTS	Yes / Yes
Auro 3D	13ch
IMAX Enhanced	Yes
MPEG-H	Yes (Update)
Multichannel Stereo	Yes
Max Number of Processing (Preamp) Channels	13.2

Sound Enhancements

Mono Block Power Amp Construction	Yes
Discrete Power Amplifier	11
110th Anniversary Audio Tuning	No
Iron diecast feet	No
Copper plated transformer base	No
Premium speaker terminals	No
All black interior	No
D.D.S.C. HD Digital	Yes (32 bit)
Pure Direct	Yes
High Grade Audio Components	Yes
Gold Plated RCA Terminals	Yes
Clock Jitter Reducer	Yes
Alpha Processing	AL32 Processing Multichannel
Audyssey	MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume	Yes / Yes
Audyssey LFC	Yes
Audyssey APP Support	Yes
Speaker Setup Presets	2
Compressed Audio Restorer	Yes

Network

HEOS Multiroom and Streaming	Yes
Lossy Formats: MP3 / WMA / AAC	Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV	Yes / Yes / Yes
DSD Audio Streaming	up to DSD5.6
FLAC HD 192/24	Yes
WAV 192/24	Yes
ALAC 192/24	Yes
Gapless playback	Yes (FLAC, WAV, ALAC, DSD)
AirPlay 2	Yes
Roon Tested	Yes
Internet Radio	TuneIn
Spotify Connect* / Tidal* / Deezer* / others *	Yes / Yes / Yes / Yes
Amazon Prime Music* / Pandora*	Yes / Yes
Compatible with Remote APP for Smart Phones	Android / iOS
Compatible with Remote APP for Tablets	Android / iOS/Amazon Kindle
Ethernet Ports	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth Headphone transmission	Yes

HDMI

HDMI Inputs: Back / Front	7 / 1
HDCP2.3 support	Yes
HDMI Outputs: Main / Zone	2 / 1
HDMI max Resolution (8k / 4k)	8k/60 - 4k/120**
Video Conversion Analog -> HDMI	Yes
HDMI to HDMI Scaling	up to 8K 60/50
HDMI: 8K / 4K / CEC / eARC	Yes / Yes / Yes / Yes
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG	Yes / Yes / Yes / Yes
HDMI: ALLM / QMS / QFT / VRR	Yes / Yes / Yes / Yes
HDMI pass-though in standby mode	Yes
DSD Audio Capability	Yes

Multi-room CI

HEOS Multiroom integrated	Yes
TV Sound grouping	Yes
Multi-Room Zones	3
Main room multichanel audio - Zone stereo downmix	Yes
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog	Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout	Yes / Yes
Zone HDMI Output from HDMI Source	Yes
Webbrowser Setup	Yes
IP Control / RS232 Control / Web Control / App Control	Yes / Yes / Yes / Yes
Remote In / Out	Yes / Yes
DC Trigger Output	2

Others

Voice Control - Works with Amazon Alexa	Yes
Voice Control - Google Assist / Apple Siri	Yes / Yes
Voice Control - Microphone built-in	No
Auto Speaker Setup by Microphone	Audyssey MultEQ XT32
FL Display	2 lines
Graphic User Interface - GUI	Advanced
ISF Certification	Yes
GUI Languages	9
Setup Assistant	Yes
Quick Select Plus / Quick Select	Yes / No
Firmware Update by: Network / USB	Yes / Yes
Variable Cross Over	Yes
Optimized Bass Redirection	Yes
Bass Sync	Yes
ECO Mode	Yes
Auto Power Off	Yes
Sleep Timer	Yes

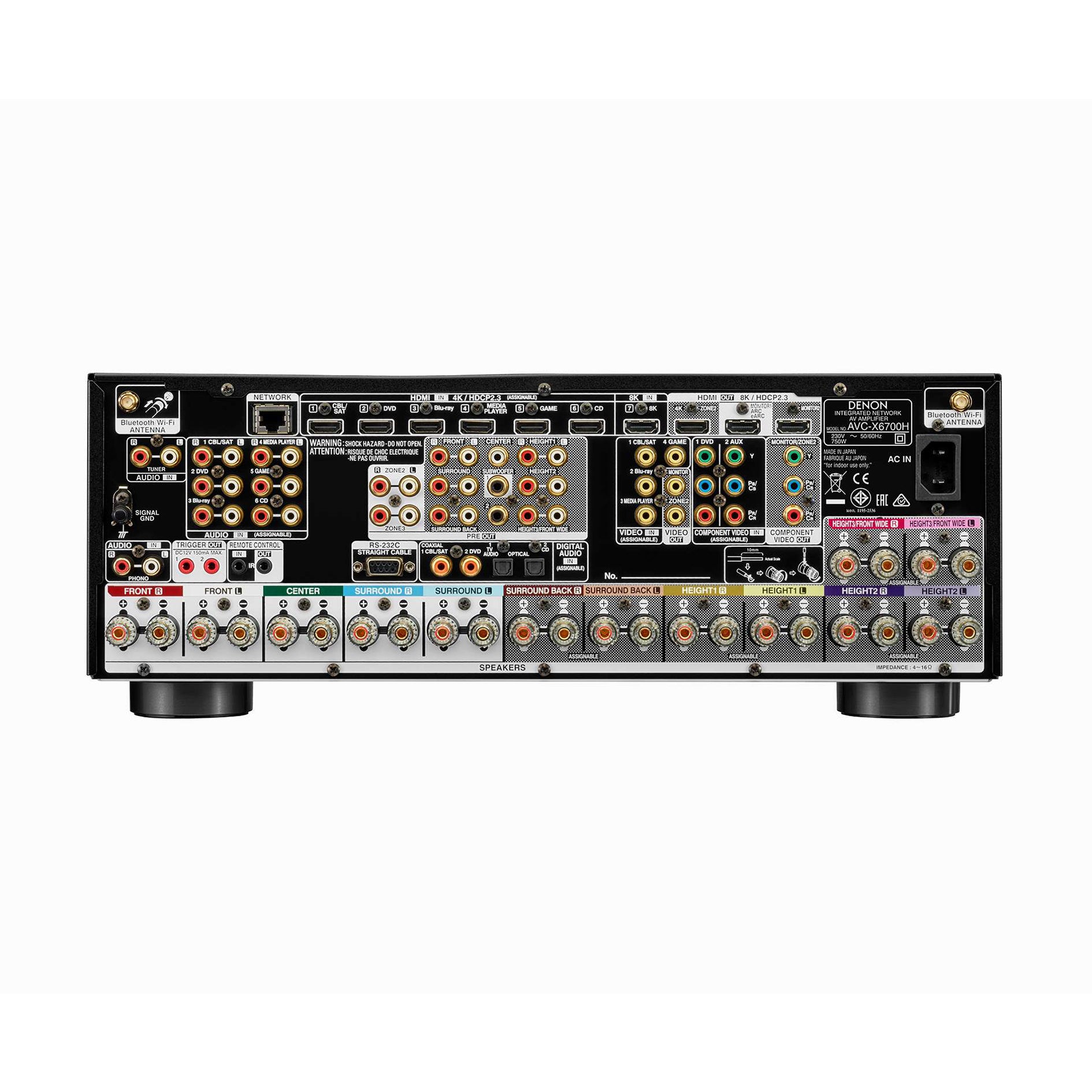

Inputs Outputs

Composite In / Out	4 / 2
Component In / Out	2 / 1
HDMI In / Out	7+1 / 3
Multi-room Video Out: Video / HDMI	Yes / Yes
Analogue In/out	7 / No
Phono (MM) In	Yes
Digital In: Optical / Coaxial	2 / 2
Multi-room Out: Analog / Digital	2 / No
Multichannel Preout	Yes (13.2)
Subwoofer Out	2 (independent)
7.1 Multichannel Input	No
Speaker Terminal: Gold Plated Screw / Regular Screw	Yes / No
Speaker A / B	assignable
Bi-amp Drive	assignable
Multi-Room Speaker Terminal	assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB	No / No / No / Yes / Yes
USB Audio / Made for iPod / Made for iPhone	Yes / AirPlay / AirPlay
FM Tuner with RDS	No

Specifications

Number of Power Amps	11
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)	No
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)	140 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)	175 W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive)	205 W

General

Available colours: Black / Premium Silver	Yes / Yes
Metal Front Panel	Yes
System Remote Control	RC-1240
Pre-programmed / Learnable / LCD Display	Yes / No / No
Power Consumption in W	750
Power Consumption No-Sound (ECO On / Off) in W	65 W / 110 W
Standby Consumption in W	0.1
CEC Standby Consumption in W	0.5
Network Control On Consumption in W	3.7
Maximum Dimensions Antenna: Horizontal: (W x D x H) in mm Antenna: Vertical: (W x D x H) in mm W/O Antenna: (W x D x H) in mm	434 x 389 x 167 ( 434 x 389 x 235 ) 【 434 x 379 x 167 】
Weight in kg	14.8
Carton Maximum Dimensions (W x D x H) in mm	531 x 464 x 302
Carton Weight (inc. product) in kg	17.4
