DENON AVC-X4700H

9.2ch 8K AV Amplifier with 3D Audio and HEOS Built-in

The Denon AVC-X4700H 9.2 channel 8K AV amplifier with 200W per channel fully supports 3D audio formats like Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:X™, IMAX® Enhanced and Auro-3D®. Comes equipped with the latest in HDMI specifications such as 8K/60Hz and 4K/120Hz pass-through, VRR, ALLM, Dynamic HDR, HDR10+ and eARC support.

Discover 8K

Enjoy high quality 8K entertainment.
9.2 channels of
excellence

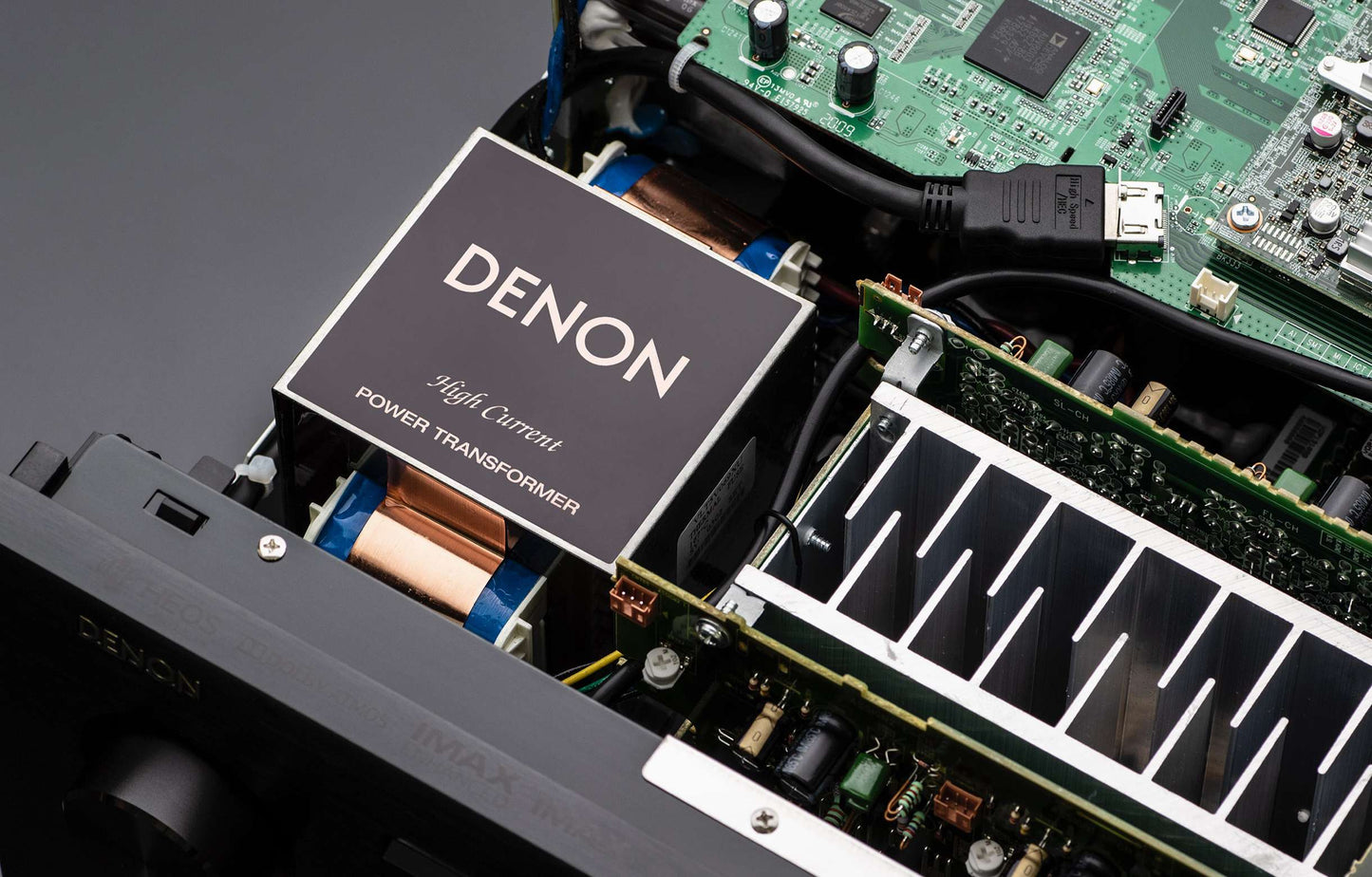

Featuring discrete, high-current amplifiers on all channels ensuring a dynamic and precise entertainment experience.
3D audio excellence

Immerse yourself in 3D audio with Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS Virtual:X, and IMAX Enhanced.
High-Resolution audio

Enjoy superb audio fidelity with your favourite high-resolution audio tracks from your favourite sources.

TECHNICAL SPECIFICATIONS

Multichannel Surround

DTS HD Master / DTS:X	Yes / Yes
DTS Neo:X / DTS Neural:X	No / Yes
DTS Virtual:X	Yes
Dolby TrueHD / Dolby Atmos	Yes / Yes
Dolby ProLogic II / Dolby Surround	No / Yes
Auro 3D	Yes
Multichannel Stereo	Yes
Max Number of Processing (Preamp) Channels	11.2
IMAX Enhanced	Yes

Sound Enhancements

Discrete Power Amplifier	9
D.D.S.C. HD Digital	Yes (32 bit)
Pure Direct	Yes
High Grade Audio Components	Yes
Clock Jitter Reducer	Yes
Alpha Processing	AL32 Processing Multichannel
Denon Link HD	Yes
Audyssey	MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume	Yes / Yes
Audyssey LFC	Yes
Audyssey APP Support	Yes
Compressed Audio Restorer	Yes

Network

HEOS Multiroom and Streaming	Yes
Lossy Formats: MP3 / WMA / AAC	Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV	Yes / Yes / Yes
DSD Audio Streaming	up to DSD5.6
FLAC HD 192/24	Yes
WAV 192/24	Yes
ALAC 192/24	Yes
Gapless playback	Yes (FLAC, WAV, ALAC, DSD)
AirPlay Audio Streaming	Yes
AirPlay 2	Yes
Internet Radio	TuneIn
Spotify Connect* / Tidal* / Deezer* / others *	Yes / Yes / Yes / Yes
Compatible with Remote APP for Smart Phones	Android / iOS
Compatible with Remote APP for Tablets	Android / iOS/Amazon Kindle
Ethernet Ports	Yes
Wi-Fi	Yes
Bluetooth	Yes

HDMI

HDMI Inputs: Back / Front	7 / 1
HDCP 2.2 support	Yes
HDCP2.3 support	Yes
HDMI Outputs: Main / Zone	2 / 1
HDMI max Resolution (8k / 4k)	8k/60 - 4k/120**
Video Conversion Analog -> HDMI	Yes
Analog to HDMI Scaling	480i/576i up to 8K 60/50
HDMI to HDMI Scaling	up to 8K 60/50
GUI Overlay on HDMI	Yes
HDMI: 8K / 4K / CEC / eARC	Yes / Yes / Yes / Yes
HDMI: 3D / 4K / CEC / ARC	Yes / Yes / Yes / Yes
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG	Yes / Yes / Yes / Yes
Enhanced ARC	Yes
HDMI: ALLM / QMS / QFT / VRR	Yes / Yes / Yes / Yes
HLG / Dolby Vision	Yes / Yes
4K Signal Pass-through / Scaling / GUI Overlay	Yes / Yes / Yes
HDMI pass-though in standby mode	Yes
Picture Adjust / Noise Reduction	Yes / Yes
CEC	Yes
DSD Audio Capability	Yes
Audio Return Channel	Yes
Auto LipSync	Yes

Multi-room CI

HEOS Multiroom integrated	Yes
TV Sound grouping	Yes
Multi-Room Zones	3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog	Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout	Yes / Yes
Zone HDMI Output from HDMI Source	Yes
Webbrowser User Interface	Yes
Smart Remote Management	Yes
IP Control / RS232 Control / Web Control / App Control	Yes / Yes / Yes / Yes
Remote In / Out	Yes / Yes
DC Trigger Output	2

Others

Voice Control - Works with Amazon Alexa	Yes
Auto Speaker Setup by Microphone	Audyssey MultEQ XT32
FL Display	2 lines
Graphic User Interface - GUI	Advanced
ISF Certification	Yes
GUI Languages	9
Setup Assistant	Yes
Quick Select Plus / Quick Select	Yes / No
Firmware Update by: Network / USB	Yes / Yes
Variable Cross Over	Yes
Optimized Bass Redirection	Yes
Bass Sync	Yes
ECO Mode	Yes
Auto Power Off	Yes
Sleep Timer	Yes

Inputs Outputs

Composite In / Out	3 / 2
Component In / Out	2 / 1
HDMI In / Out	7+1 / 3
Multi-room Video Out: Video / HDMI	Yes / Yes
Analogue In/out	5 / No
Phono (MM) In	Yes
Digital In: Optical / Coaxial	2 / 2
Multi-room Out: Analog / Digital	2 / No
Multichannel Preout	Yes (11.2)
Subwoofer Out	2 (independent)
Speaker Terminal: Gold Plated Screw / Regular Screw	No / Yes
Number of Speaker Terminals	11
Speaker A/B / Bi-amp Drive / Multi-Room Speaker	assignable
Speaker A / B	assignable
Bi-amp Drive	assignable
Multi-Room Speaker Terminal	assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB	No / No / No / Yes / Yes
USB Audio / Made for iPod / Made for iPhone	Yes / AirPlay / AirPlay
FM Tuner with RDS	Yes

Specifications

Number of Power Amps	9
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)	125 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)	165 W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive)	200 W

General

Available colours: Black / Premium Silver	Yes / Yes
Metal Front Panel	Yes
System Remote Control	RC-1219
Pre-programmed / Learnable / LCD Display	Yes / No / No
Power Consumption in W	710
Power Consumption No-Sound (ECO On / Off) in W	65 W / 110 W
Standby Consumption in W	0.1
CEC Standby Consumption in W	0.5
Network Control On Consumption in W	3.7
Maximum Dimensions Antenna: Horizontal: (W x D x H) in mm Antenna: Vertical: (W x D x H) in mm W/O Antenna: (W x D x H) in mm	434 x 389 x 167 ( 434 x 389 x 236 ) 【 434 x 379x 167 】
Weight in kg	13.7
