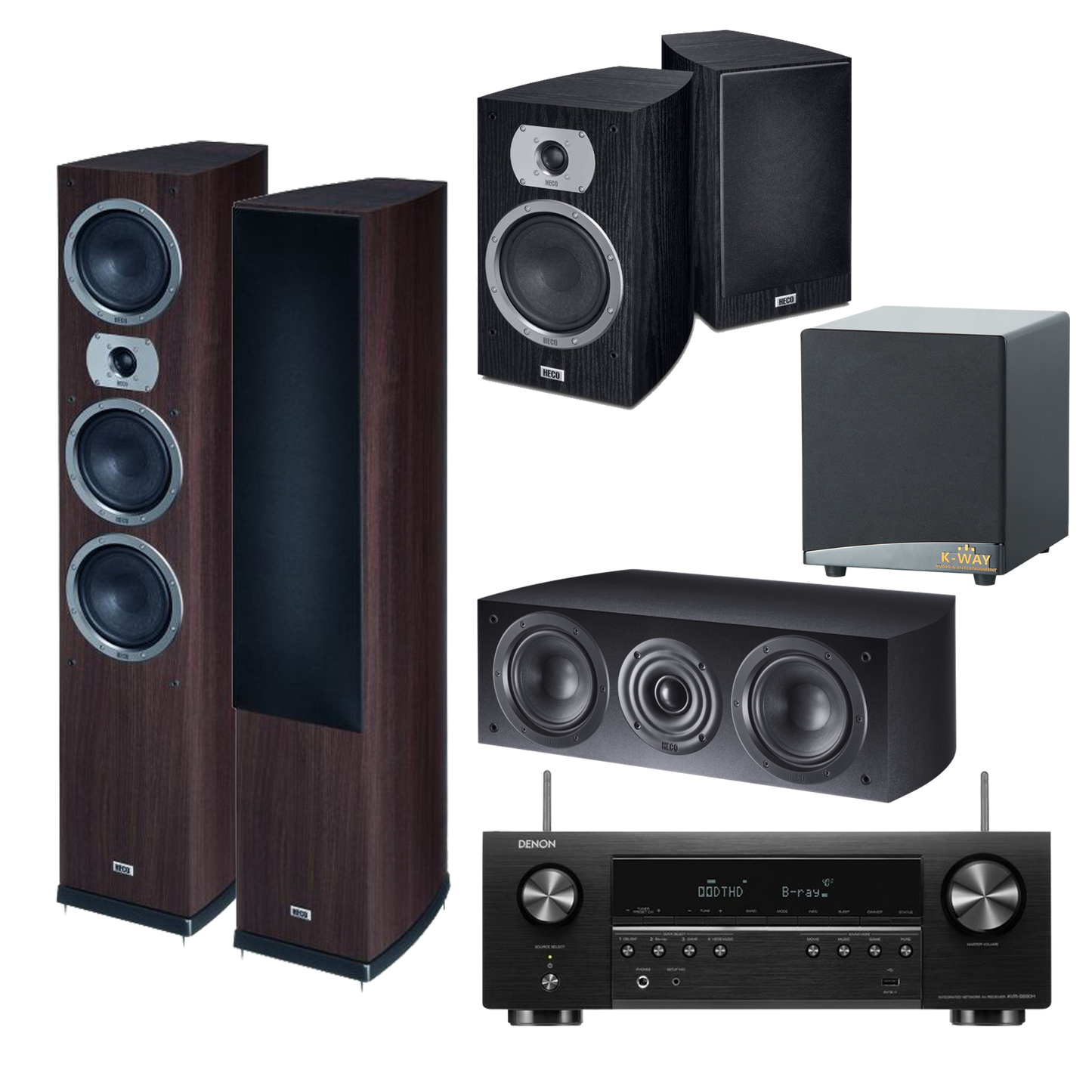

5.2 Ch. 75W 8K AV Receiver with HEOS® Built-in
Designed for 4K or 8K setups, the AVR-S670H delivers superior 3D audio home theater/gaming experiences and supports the latest HDMI specifications.
-
Advanced 5-channel amplifier
Delivers maximum performance and 75W per channel to provide the classic and dynamic Denon sound experience.
-
Advanced 8K HDMI video with eARC support
Three 8K inputs support the latest HDMI specifications—8K/60Hz, select 4K/120Hz pass-through, VRR, Dolby Vision™, HDR10+, and ALLM.
-
Full surround sound experience
Enjoy enveloping Dolby TrueHD or DTS-HD Master Audio 5.1 surround sound from Blu-ray, streaming services and TV.
-
Easy setup and operation
Once you connect your TV to the AVR-S660H, the Denon Setup Assistant walks you through the setup, step by step.
-
TECHNICAL SPECIFICATIONSMultichannel Surround
DTS HD Master / DTS:X Yes / No DTS Neo:X / DTS Neural:X NEO: 6 / No Dolby TrueHD / Dolby Atmos Yes / No Dolby ProLogic II / Dolby Surround Yes / No Multichannel Stereo Yes Dialog Enhancer Yes Max Number of Processing (Preamp) Channels 5.1
Sound EnhancementsDiscrete Power Amplifier 5 Audyssey MultEQ Audyssey Dynamic EQ / Dynamic Volume Yes / Yes Compressed Audio Restorer Yes NetworkHEOS Multiroom and Streaming Yes Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes DSD Audio Streaming up to DSD5.6 FLAC HD 192/24 Yes WAV 192/24 Yes ALAC 192/24 Yes Gapless playback Yes (FLAC, WAV, ALAC, DSD) AirPlay 2 Yes Roon Tested Yes Internet Radio TuneIn Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes Amazon Prime Music* / Pandora* Yes / Yes Compatible with Remote APP for Smart Phones Android / iOS Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle Ethernet Ports Yes Wi-Fi Yes Bluetooth Yes Bluetooth Headphone transmission Yes
HDMIHDMI Inputs: Back / Front 6 (3x 8K) / 0 HDCP2.3 support Yes HDMI Outputs: Main / Zone 1 / No HDMI max Resolution (8k / 4k) 8k/60 - 4k/120 HDMI to HDMI Scaling up to 8K 60/50 HDMI: 8K / 4K / CEC / eARC Yes / Yes / Yes / Yes HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG Yes / Yes / Yes / Yes HDMI: ALLM / QMS / QFT / VRR Yes / Yes / Yes / Yes HDMI pass-though in standby mode Yes
Multi-Room / CIHEOS Multiroom integrated Yes TV Sound grouping Yes Main room multichanel audio - Zone stereo downmix Yes Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog No / No / No / No Zone Audio Output: Speaker / Preout No / No Webbrowser Setup Yes IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes Remote In / Out No / No
OthersVoice Control - Works with Amazon Alexa Yes Voice Control - Google Assist / Apple Siri Yes / Yes Auto Speaker Setup by Microphone Audyssey MultEQ FL Display 1 line Graphic User Interface - GUI Hybrid GUI GUI Languages 3 Setup Assistant Yes Quick Select Plus / Quick Select Yes / No Firmware Update by: Network / USB Yes / Yes Variable Cross Over Yes Optimized Bass Redirection Yes ECO Mode Yes Auto Power Off Yes Sleep Timer Yes
Inputs/OutputsComposite In / Out 2 / 1 Component In / Out No / No HDMI In / Out 6 / 1 Multi-room Video Out: Video / HDMI No / No Analogue In/out 2 / No Phono (MM) In Yes Digital In: Optical / Coaxial 2 / 1 Multi-room Out: Analog / Digital No / No Multichannel Pre-out Yes (0.2) Subwoofer Out 2 Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes Number of Speaker Terminals 5 Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes USB Audio / Made for iPod / Made for iPhone Yes / AirPlay / AirPlay Tuner: FM / AM Yes / Yes SpecificationsNumber of Power Amps 5 Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 75W Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 100W Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 150W GeneralAvailable colors: Black / Premium Silver Yes / No System Remote Control RC-1243 Pre-programmed / Learnable / LCD Display No / No / No Power Consumption in W 340 Power Consumption No-Sound (ECO On / Off) in W 29 W / 39 W Standby Consumption in W 0.1 CEC Standby Consumption in W 0.5 Network Control On Consumption in W 2.0 Maximum Dimensions w/ Antenna (W x D x H) 434 x 339 x 215 mm Dimensions w/o Antenna (W x D x H) 434 × 339 × 151 mm Weight in kg 7.8 Carton Maximum Dimensions (W x D x H) in mm 523 x 435 x 232 mm Carton Weight (inc. product) in kg 9.7 KWAY SUB WOOFER 12' Specifications:
Usable Range： 50Hz-180Hz (±3dB)
Standard Impedance： 4Ω
Rated Power： 80W Max Value：150W
SPL： 86dB/1w/1m
Rated Sound Compression ： 108dB Max Value116dBHECO Victa Prime 702
3-WAY FLOORSTANDING SPEAKER, BASS REFLEX WITH DOUBLE BASS.
Technical Data
-
PRINCIPLE
3 way bass reflex -
SENSITIVITY (2.8V/1M)
91 dB -
IMPEDANCE
4-8 ohms -
CROSSOVER FREQUENCIES
350 Hz, 3.250 Hz -
POWER HANDLING (RMS/MAX)
170/300 watts -
FREQUENCY RESPONSE
25 - 40.000 Hz -
RECOMMENDED AMPLIFIER OUTPUT
30 - 300 Watt -
DIMENSIONS (WXHXD)
203 x 1052 x 315 mm
HECO Victa Prime 702
Technical Data
-
PRINCIPLE
3 way bass reflex -
SENSITIVITY (2.8V/1M)
91 dB -
IMPEDANCE
4-8 ohms -
CROSSOVER FREQUENCIES
350 Hz, 3.250 Hz -
POWER HANDLING (RMS/MAX)
170/300 watts -
FREQUENCY RESPONSE
25 - 40.000 Hz -
RECOMMENDED AMPLIFIER OUTPUT
30 - 300 Watt -
DIMENSIONS (WXHXD)
203 x 1052 x 315 mm
DECO Victa Elite Center 102
2-WAY BASS REFLEX CENTER SPEAKER
Technical Data
-
PRINCIPLE
2 way center speaker, bass reflex -
SENSITIVITY (2.8V/1M)
90 dB -
IMPEDANCE
4 - 8 Ohms
DECO Victa Prime 302
2-WAY BOOKSHELF SPEAKER, BASS REFLEX
Technical Data
-
PRINCIPLE
2-Wege Lautsprecher, Bassreflex -
SENSITIVITY (2.8V/1M)
90 dB -
IMPEDANCE
4 – 8 Ohm -
CROSSOVER FREQUENCIES
3.250 Hz -
POWER HANDLING (RMS/MAX)
85/150 Watt -
FREQUENCY RESPONSE
33 - 40.000 Hz -
RECOMMENDED AMPLIFIER OUTPUT
30 - 150 Watt -
DIMENSIONS (WXHXD)
203 x 347 x 315 mm
-
PRINCIPLE
