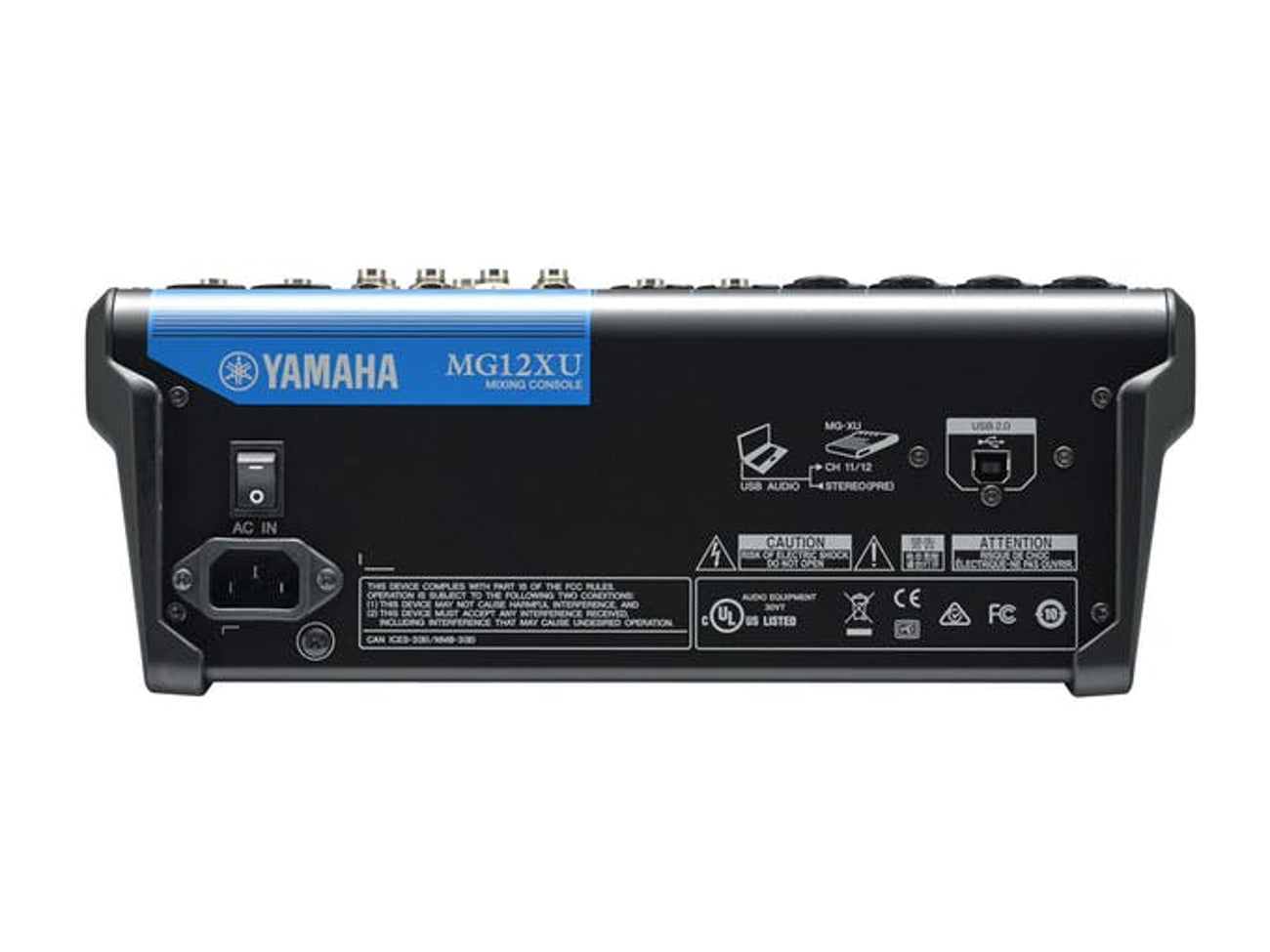

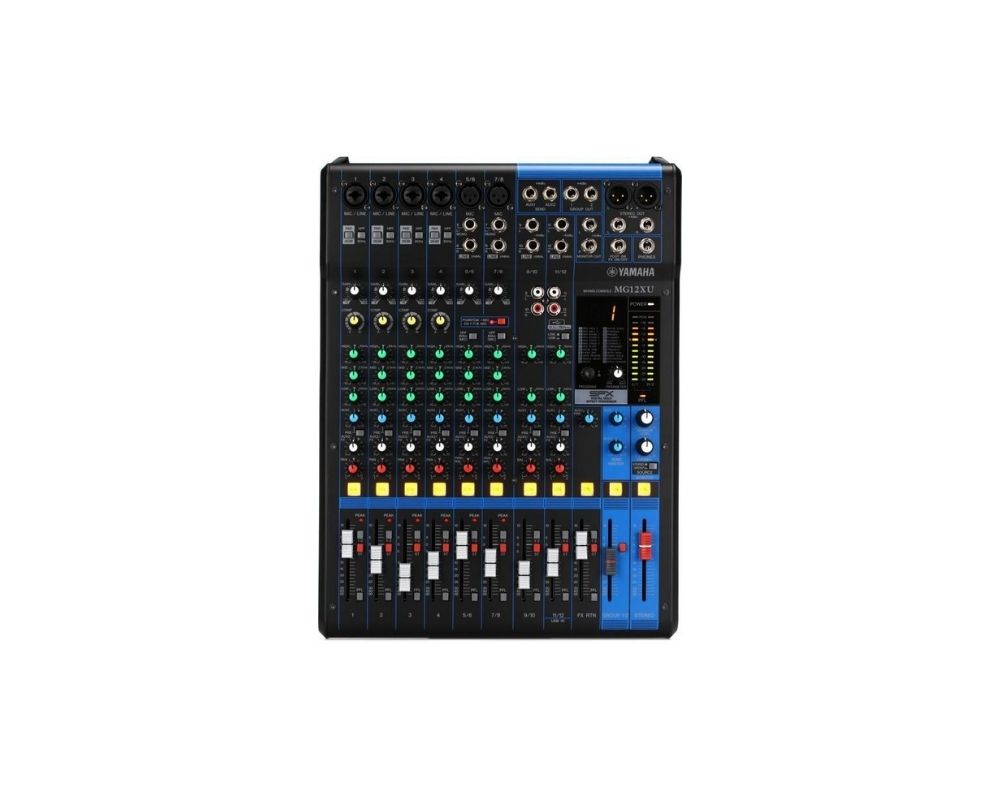

Yamaha MG12XU 12-Channel Mixer

Yamaha MG12XU 12-Channel Mixer and Effects with Gator G-Mixer Bag-1815 (MG 12XU)

The Yamaha MG12XU analog mixer is well-suited for portable rigs or permanent installations, with its rich features and outstanding sound quality. The MG12XU's quality op-amp ensures that your mix sounds transparent and articulate. The MG12XU's crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring onboard digital effects, switchable phantom power, a pad switch, one-knob compressors, EQ, plenty of I/O, and LED metering, the MG12XU can take on just about any task you throw at it. Utilizing many state-of-the-art features from Yamaha's high-end consoles, the MG12XU is ready to work for you!

FEATURES

Outstanding microphone preamps
Switchable Phantom Power & PAD Switch
1-knob Compressors
EQ and High-pass Filters
AUX / Effect Sends / Group
LED level metering
Built-in SPX Digital Effects
Metal Chassis
USB

Order today and decipher your mixing conundrums with aplomb.

SPECIFICATIONS

On-board processors : SPX algorithm: 24 programs
Phantom power: +48 V
Digital I/O: USB Audio Class 2.0 compliant, Max 192 kHz, 24-bit
Input Channels: 6 Mono[MIC/LINE], stereo[LINE]: 3
Output Channels: STEREO OUT: 2
MONITOR OUT: 1
PHONES: 1
AUX SEND: 1
Bus: Stereo: 1, AUX[FX]: 1
Input Channel Function
PAD: 26 dB (Mono)
HPF: 80 Hz, 12 dB/oct (Mono)
COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
