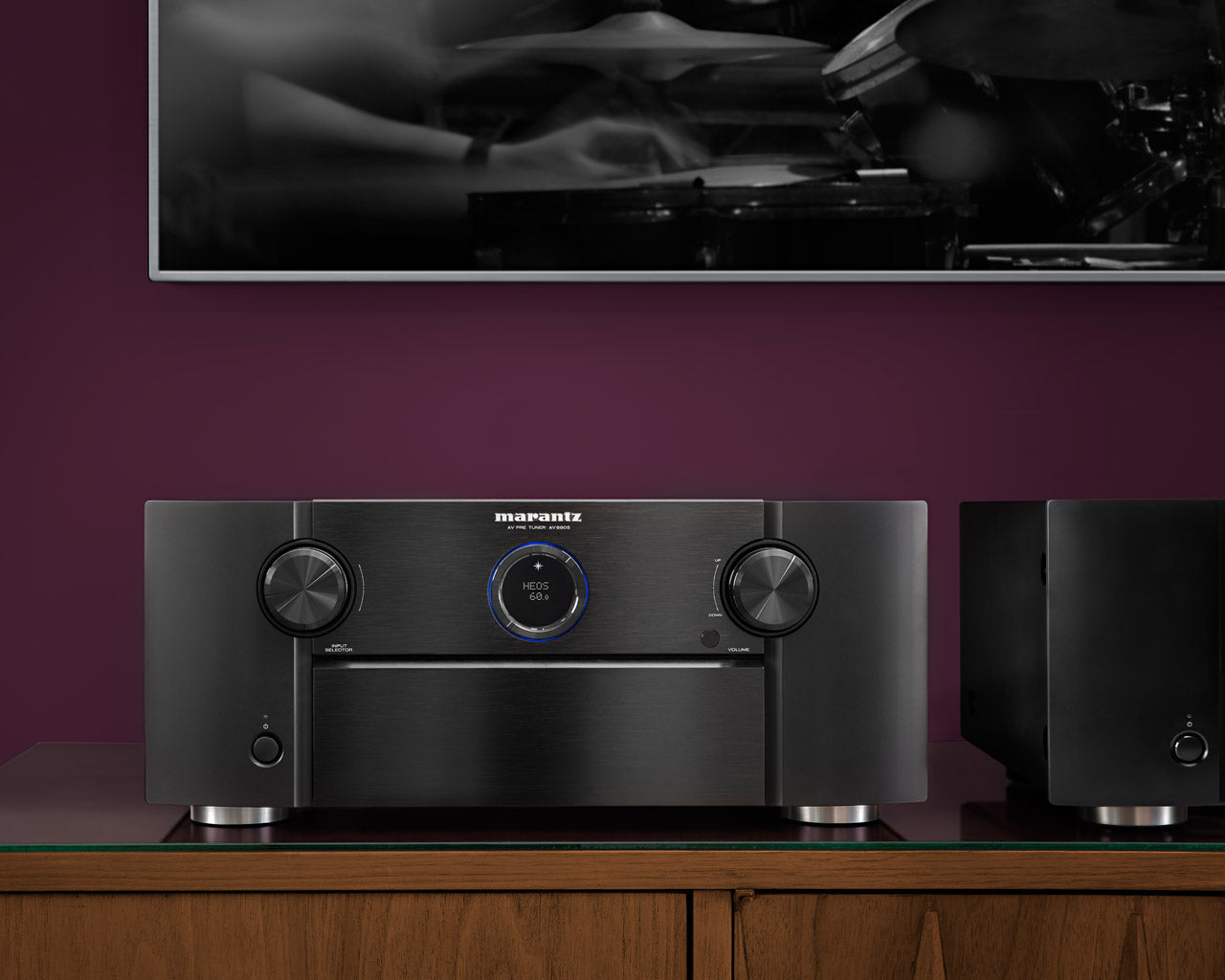

Marantz AV8805 AN1B
Marantz AV8805 AN1B
Marantz AV8805 AN1B
Marantz AV8805 AN1B
Marantz AV8805 AN1B
Marantz AV8805 AN1B
Marantz AV8805 AN1B
Marantz AV8805 AN1B

Marantz AV8805 AN1B

Regular price RM25,899.00 MYR Sale

AV8805 - AV Pre-Amplifier

The versatile Marantz AV8805 pre-amplifier redefines the audiophile home cinema and music listening experience with an unprecedented 13.2 channel processing capability, and support for virtually any high-resolution multichannel audio format. With the latest surround formats like Dolby Atoms, DTS:X or Auro-3D you can also immerse yourself in the wonder of three-dimensional audio. This enhanced audio quality is made possible by our proprietary current feedback and HDAM technology that passes signals through a 15.2 channel XLR or 15.2 RCA output. To top it off, you can also stream music throughout your home with HEOS multi-room listening and full wireless connectivity through the HEOS app or Amazon Alexa Voice Control*, supported by Wi-Fi, Bluetooth and Apple Airplay. With the Marantz AV8805, you get incredible fidelity and unparalleled audio precision.

Marantz made sure the AV8805A is compatible with the latest video processing technology. One of its eight HDMI inputs supports 8K/60Hz and 4K/120Hz video content (think Sony's PlayStation® 5).

The other seven HDMI inputs support 4K at 60 frames per second — perfect for high-quality sources like a
4K Ultra HD Blu-ray player, or an Apple TV

The AV8805A excels at processing "object-based" surround sound formats like Dolby Atmos or DTS:X™, which place sound effects in space around you with pinpoint accuracy.
With support for up to 13 speakers, you'll hear the movie's score and special effects above, behind, in front of, and beside you — just like you would in an actual theater.

This pre/pro also lets you stream tunes from your phone or tablet through Wi-Fi, Bluetooth, or Apple AirPlay 2. Or, use the built-in phono input to hook up your turntable. You can even play high-resolution tracks from a USB drive or networked computer.

Ausgefeilte Technik

Der AV8805 mit 13.2 Kanälen und 15.2-Kanal-XLR/Cinch-Ausgängen ist eine flexible und doch detailreiche Vorverstärkerstufe für fortgeschrittene Heimkino-Enthusiasten. Kombinieren Sie ihn mit den klanglich passenden Leistungsverstärkern der Marantz MM-Serie wie dem MM8077 und tauchen Sie ein in den dreidimensionalen Sound der neuesten integrierten Surround-Formate, darunter Dolby Atmos, DTS:X Pro und Auro-3D. Auro-3D wird zu einem späteren Zeitpunkt über ein kostenloses Firmware-Update aktiviert. Bei der Marantz-eigenen HDAM-Technologie wird ein vollständig diskreter Schaltungsaufbau mit einem extrem hohen Leistungsgrad kombiniert, um einen deutlich größeren Dynamikbereich und eine erlesene Klangqualität zu erreichen. Integrierte Streaming-Funktionen über Bluetooth und WLAN sowie die Unterstützung von HEOS und Apple AirPlay ermöglichen sorgenfreien Audiogenuss ohne lästige Kabel.

Unterstützung von HDCP 2.2 und neuesten HDMI-Spezifikationen

Der Marantz AV8805 unterstützt an allen acht HDMI-Eingängen HDCP 2.2 sowie die neuesten HDMI-Spezifikationen und ist damit bestens für die Zukunft gerüstet. Außerdem bietet er an jedem Eingang 4K Ultra HD-Video (60 Hz), 4:4:4 Pure Color Sub-Sampling, High Dynamic Range (HDR) sowie das Videoformat 21:9, 3D- und BT.2020-Passthrough. Dabei ist er mit 4K Ultra-HD-Blu-ray-Playern, Set-Top-Boxen und anderen 4D-Ultra-HD-Quellen kompatibel. Dolby-Vision-Passthrough sowie das neue Format für HDR-TV-Übertragungen HLG (Hybrid Log Gamma) werden ebenfalls unterstützt.

Hochwertige 32-Bit-D/A-Wandler auf allen Kanälen

Der AV8805 trumpft mit hochwertigen 32-Bit Digital/Analog-Wandlern (DACs) auf allen Kanälen sowie XLR-Ein- und -Ausgängen auf. Neben dem symmetrischen XLR-Stereoeingang bietet das Gerät symmetrische 15.2-Kanal-XLR-Vorverstärkerausgänge, darunter zwei Subwoofer-Ausgänge, Front-Height/Wide-Ausgänge und Overhead-Kanäle.

Hochwertige Audiokomponenten

Der AV8805 ist mit den neuesten Marantz eigenen HDAM-Komponenten (Hyper Dynamic Amplifier Module) ausgestattet, bei denen passgenaue separate Präzisionselemente auf einer kompakten Platine zum Einsatz kommen. Auch der extrem breite Frequenzgang (100 kHz, -3 dB) sorgt für eine weit geöffnete Klangbühne mit exakter Detailwiedergabe.

= Dolby® and DTS® surround sound decoding
= Dolby Atmos processing for use with in-ceiling or "height" speakers for more enveloping surround sound; compatible with 5.1.2 to 9.2.4 setups
= DTS:X for an immersive, 3-dimensional soundstage
= Auro-3D® built in for three-dimensional soundfields with Auro-3D soundtrack mixes (up to 13.1-channel configurations)
= IMAX Enhanced certification for improved performance with IMAX Enhanced content (via firmware update)
= video upconversion (up to 4K) for analog and HDMI sources
= Audyssey "Platinum" speaker calibration and system optimization includes:
= MultEQ® XT32 advanced auto setup and room calibration uses high-resolution digital processing filters to deliver = balanced, dynamic sound to as many as 8 listening positions (expandable to 32 with a professional installer)
= Audyssey Dynamic Volume mode to keep listening levels steady
= Audyssey Dynamic EQ for fuller sound at lower listening levels
= Sub EQ HT provides individual calibration for dual subwoofers, for even bass response throughout the room
= Low Frequency Containment reduces the amount of bass that bleeds into other rooms

Why Buy From Us?
- We Have A Permanent Retail Shop.
- We Are A Register Company (SSM Company Commission Malaysia).
- We Provide After Sale Service .
- We have In House Technician Support.

Key Features

  • 13.2 channel processing with 15.2 channel XLR and RCA outputs and flexible pre-amplifier stages — ideal for the advanced home cinema enthusiast
  • Enjoy immersive, three-dimensional sound with the latest surround formats including Dolby Atmos (up to 7.1.6 or 9.1.4), DTS:X and Auro-3D (up to 13.1)
  • High-performance 192kHz/32bit D/A converters for all channels provide the highest resolution for music and movies
  • Audyssey MultEQ XT32, LFC, Sub EQ HT, Dynamic Volume and DynamicEQ deliver equalization to best suit your listening environment
  • Built-in Bluetooth and Wi-Fi with 2.4GHz/5GHz dual band support offer improved network stability even in Wi-Fi-crowded homes
  • Listen from any room of your home with HEOS wireless music streaming technology and the HEOS app
  • Ultimate visual quality with 4K/60 Hz full-rate pass-through, 4:4:4 colour resolution, HDR, BT.2020, Dolby Vision and HLG (Hybrid Log Gamma) pass-through
  • eARC (Enhanced Audio Return Channel) functionality via firmware update supports the most advanced surround and object-based audio formats, including Dolby Atmos and DTS:X via single HDMI connection between AVRs and compatible TVs

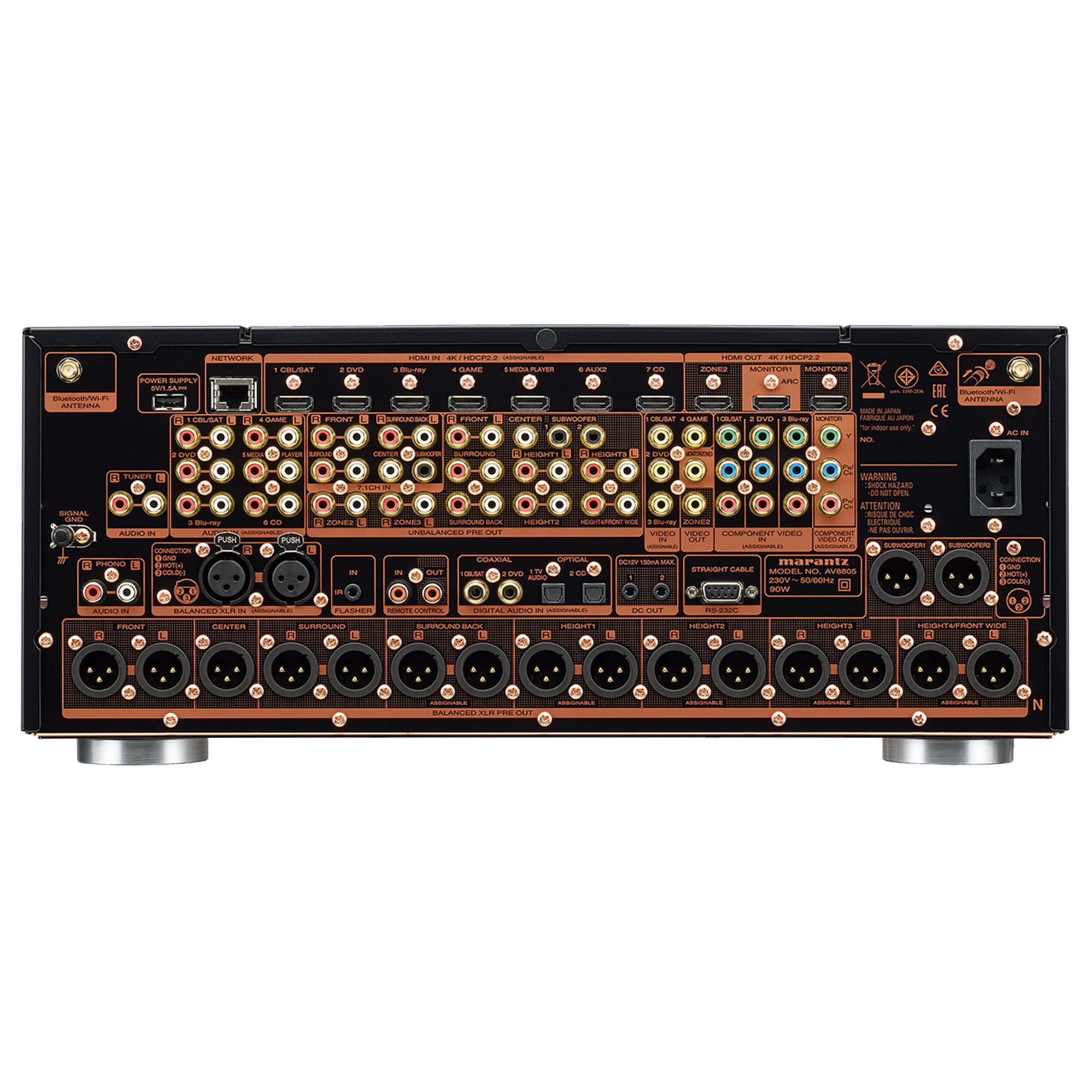

  • Eight HDMI inputs, including one on the front, with full HDCP 2.2 support, plus three HDMI outputs (zones), plenty of inputs for your digital devices and the ability to support different video in different rooms
  • Analogue to HDMI conversion and SD to HD/4K Upscaling for legacy video sources, plus full HD and even Ultra HD video quality from existing DVDs or analogue sources
  • Stream music from AirPlay, Bluetooth, Spotify, TuneIn Internet radio, Sound Cloud, Tidal, Napster, Deezer, and more via the HEOS app
  • Network music streaming supporting DSD (2.8/5.6MHz), FLAC, ALAC and WAV for high-resolution, Hi-Fi listening
  • Installation and operation are seamless with the Setup Assistant and Marantz AVR Remote app

Sophisticated Engineering

The Marantz AV8805 offers an outstanding construction for the best, unaltered music and movie playback. The highly rigid base chassis - the foundation for all circuit boards carrying the sensible audio signal – leaves no chance for microphonic effects through unwanted vibration. The oversized toroidal transformer feeding the big main capacitors is set on an extra 5mm aluminium pedestal for extra stability. All electronic is supported by the copper plating on the main chassis which guarantees best ground connection at any point and improves Signal to Noise behaviour significantly. In total 17 single board HDAM modules are used to achieve best channel separation for reference-setting audio performance. Finally, everything is covered well by a heavy top lid constructed out of three pieces.


Latest HDMI Connectivity; HDCP 2.2 Compatible

The Marantz AV8805 is future-compatible, with the latest HDMI and HDCP 2.2 specifications on all eight HDMI inputs. The pre-amplifier supports 4K Ultra HD 60Hz video, 4:4:4 Pure Colour sub-sampling, High Dynamic Range (HDR) and 21:9 video, 3D, and BT.2020 pass-through on every input. It is compatible with 4K Ultra HD Blu-ray disc players, set-top boxes and other 4K Ultra HD sources. Dolby Vision compatibility, HLG (Hybrid Log Gamma), new HDR format for broadcasting and pass-through capability are also supported.


IMAX Enhanced Technology

Get the most premium at-home entertainment experience with IMAX Enhanced—the latest technology program from IMAX that sets a new standard for image, sound, scale and content quality. Watch clearer pictures and brighter images. Feel immersive, heart-pounding audio delivered by DTS. See more picture on the largest screens. And experience premium content digitally remastered by IMAX.

Dolby Atmos

Feel every dimension in Dolby Atmos with object-based audio formatting that creates a truly immersive listening experience. Enjoy a 7.1 surround sound speaker system and six additional overhead speakers or Dolby Atmos elevation speakers for the ultimate home theater experience — including Dolby Surround upmixer for legacy content.



DTS:X™ immersive audio places sound where it would occur naturally in space, creating a lifelike, multi-dimensional audio experience in the home. The included spatial remapping engine of DTS Neural:X™ offers improved immersion and heightened realism in all your favourite movies.


By fully immersing the listener in life-like sound, Auro-3D provides a more encapsulating surround sound experience thanks to dedicated height and overhead channels in addition to the regular channels. Auro-3D will be enabled via future firmware update at no additional charge.


HDMI eARC Object-Based Audio Support

eARC (Enhanced Audio Return Channel) supports the transmission of 3D audio from your TV apps with a single HDMI connection for the simplest setup. This feature will be enabled via a future firmware update.

Built-in Bluetooth, Wi-Fi, and AirPlay Capability

Featuring Bluetooth and Wi-Fi wireless streaming connectivity, the AV8805 is equipped with an advanced dual antenna transceiver system for robust streaming even in congested urban environments. Plus, with Apple AirPlay compatibility, you can enjoy listening to your favourite audio content wirelessly from your iOS devices such as an iPhone or iPad.


HEOS: Your Perfect Solution for Wireless Multi-Room Music Streaming

The AV8805's built-in HEOS technology allows you to stream and play back your favourite music wirelessly from a huge variety of sources. Enjoy music from Spotify, TuneIn Internet radio, Sound Cloud, Tidal, Napster, Deezer, or your local music file libraries. With additional HEOS components like the HEOS speaker range or other HEOS-capable receivers, you can play all your music throughout the whole house and control it all effortlessly with the free HEOS app.


Marantz AVR Remote

Re-designed from the ground up, the Marantz 2016 AVR Remote app gives you unprecedented control over the latest generation of Marantz network AV Receivers, from iOS and Android phones and tablets. Along with many new features, the graphics and user interface have been completely overhauled: control power, volume, input and settings, or switch to the HEOS app to access an incredible range of music content and streaming services, all with full HEOS wireless multi-room control.


Hi-Res Audio

The AV8805 lets you discover the incredible fidelity of high-resolution audio tracks with the ability to decode up to 24-bit/192-kHz ALAC, FLAC and WAV lossless files as well as DSD 2.8MHz and 5.6MHz tracks (the audiophile format of SACD) via the front panel USB port and network sources. Or, listen to other popular file types such as MP3.

Advanced 32-bit D/A Conversion On All Channels

The Marantz AV8805 features eight premium grade AK4490 32-bit stereo DACs on all channels and XLR input and outputs. There's a balanced XLR stereo input that's assignable as well as 15.2 balanced XLR outputs, which includes the two subwoofer outputs, front height/width outputs and overhead channels. This extensive balanced XLR compatibility ensures high-end performance in the home and the studio, while 15.2 pre-outs (RCA jacks) provide additional compatibility with multiple power amplifier types.


High-Grade Audio Components

The AV8805 features the latest Marantz proprietary HDAM (Hyper Dynamic Amplifier Module) components, which consist of matched-precision discrete selected circuit elements on a compact sub-board along with ultra-wide-band response (100 kHz, -3 dB) for an open soundstage with refined detail reproduction.

Advanced Audyssey MultEQ XT32

Equipped with the full Audyssey Platinum suite of advanced DSP algorithms, the AV8805 features Audyssey MultEQ XT32 automatic room acoustic correction. With the supplied measurement microphone, MultEQ XT32 analyzes each speaker's output (including the subwoofers) at up to eight measurement locations and generates precision digital filters that optimize each channel for the correct frequency and time domain response. Plus, the optional Audyssey MultEQ Editor app lets you view and adjust settings for detailed tuning and customize the sound more precisely to your room and tastes.

The Audyssey MultEQ Editor App

The AV8805 supports the brand-new Audyssey MultEQ Editor App. Go ‘under the hood’, view and adjust settings for detailed tuning, customize the sound more precisely to the specific problems in your room, and tailor the sound to your personal preferences.

  • View the speaker detection results, to check correct installation.
  • View before and after results of the Audyssey calibration, making it easy to identify room problems.
  • Edit the Audyssey target curve for each channel pair to suit your tastes.
  • Adjust the EQ frequency adjustment range for each channel pair.
  • Switch between 2 high frequency roll-off target curves.
  • Enable/disable midrange compensation to make the vocal region brighter or smoother.
  • Save and load calibration results.
The Audyssey MultEQ Editor app, for Android and iOS, is available for purchase from the Apple AppStore or Google Play Store.



External Control Capabilities

For remote control compatibility with other components in your home theater system, the AV8805 features an IR (infrared) remote control input and output on the rear panel, along with dual 12V trigger outputs. For direct connection to external home automation and control equipment, the AV8805 features an RS-232C serial port and Crestron Connected certification for quick and easy integration with Crestron home automation equipment.



Dual Subwoofer Outputs

A single subwoofer demands optimal placement to avoid audible peaks and dips in the low-frequency response at the main listening position. The AV8805 supports two subwoofers: used in different locations, these will even out the low-frequency response for more accurate bass anywhere in the room.


Whatever your family's entertainment needs, the AV8805 delivers: you can enjoy a surround sound setup in the main room, and at the same time play stereo sound from another source in a different part of the house. There are versatile configuration options thanks to the 13-channel processing capability


Smart TV Connectivity

The Marantz AV8805 may be controlled with your Smart TV remote via the HDMI CEC functionality associated with your Smart TV. Simply set “HDMI Control” to ON in your receiver, then set “Smart Menu” to ON and begin controlling the AV8805 with your TV remote. The Smart Menu home screen provides you quick access to source and surround mode selections, the AVR's setup menu and four Smart Selects.



Simple Smart Select Functions

The AV8805 has four Smart Select buttons on the remote control, each of which store a preferred setup; input, volume and Audyssey configuration – for a particular source. Push one button and the AV8805 can be perfectly configured for anything, from Blu-ray or your TV set-top box to your favourite Internet radio station.


Easy To Setup,
Easy To Use

For easy installation, the AV8805's clear graphical on-screen display has an exclusive Setup Assistant, combining with the Quick Start guide to provide guidance and optimize critical settings for the best possible sound quality, whatever your configuration.

More than 60 Years of Audiophile Heritage

Founded in 1953, Marantz has a long and rich history of designing audio components embraced by music lovers and critical listeners around the world. Because Music Matters, the AV8805 carries on our long tradition of delivering a best-in-class listening experience for music and cinema.



DTS HD Master / DTS:X Ja / Ja
DTS Neo:X / DTS Neural:X Nein / Ja
DTS Virtual:X Ja (update)
Dolby TrueHD / Dolby Atmos Ja / Ja
Dolby ProLogic Il / Dolby Surround Nein / Ja
Auro 3D Ja
Mehrkanal-Stereo Ja
max. Anzahl der Processing (Vorverstärker)-Kanäle 13.2
IMAX Enhanced Ja



Copper Plated Chassis Ja
Netzteil: Ringkern / EI Ja / Nein
Stromgegenkopplungstechnologie Ja
Pure Direct Ja
Hochwertige Audiokomponenten Ja
Gold plated RCA terminals Ja
Clock Jitter Reducer Ja
Audyssey MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume Ja / Ja
Audyssey LFC Ja
Audyssey APP Support Ja


Multiroom / Installer

HEOS Multi-Room Integrated Ja
Anzahl der Zonen (inkl. Hauptzone) 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Ja (2ch) / Ja (2ch) / Ja / Ja
Zonen-Audio-Ausgang: Lautsprecher / Vorverstärker Nein / Ja
Zonen-HDMI-Ausgang für HDMI-Quellen (außer Front-HDMI) Ja
Steuerung via IP / RS-232C / Web-Browser / App Ja / Ja / Nein / Ja
Fernbedienungs- Ein-/Ausgang Ja
IR Flasher-Eingang Ja
Marantz Remote Bus Ja
Trigger-Ausgänge 2



Automatische Lautsprecherkonfiguration über Mikrofon Audyssey MultEQ XT32
FL Display 2 lines + port hole
Graphische Benutzeroberfläche (GUI) Advanced
ISF certification Ja
GUI-Sprachen 9
Installations-Assistent Ja
Smart Select Ja
Firmware-Update über Netzwerk / USB Ja / Ja
Variable Übergangsfrequenz Ja
Optimierte Bass-Umleitung (bei Systemen ohne Subwoofer) Ja
Bass-Synchronisierung Ja
Automatische Abschaltung Ja
Sleep Timer Ja
