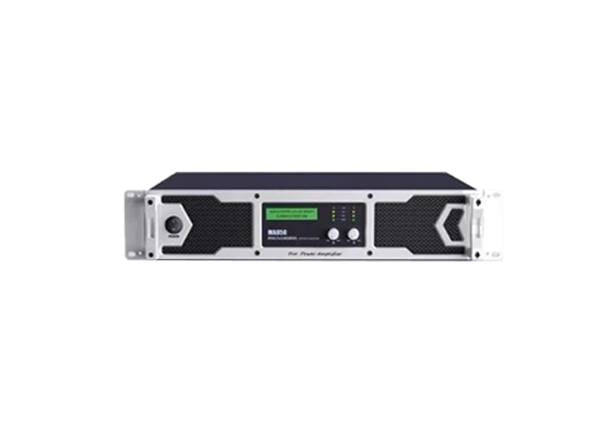

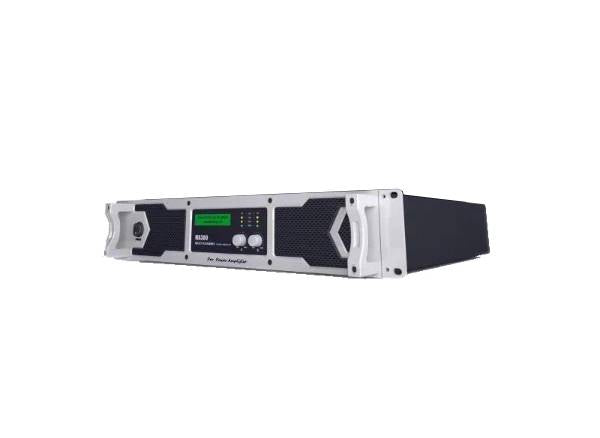

KWAY MA-650 POWER AMPLIFIER

MA 650

Features

MA series have used a variety of new technologies, special in sound. It is the best choice of the high demanding areas.

MA series used the excellent component, the key component exact matching and remain the full margin. After the improvement of Class H, used higher technology. Compare to the traditional Class H, the MA series reduces fever, reduces interference, increases reliability.

Higher efficiency, higher speed, higher power output. With the new Class H that the amplifier safely outputs over 55A.Easily face of over-load. Well, of reflect the value of a high-quality speaker.

Multiple sound protection features such as over-current, over-voltage, over-temperature, overload, DC, and VHF, and so on.

Specification

Model	MA650
Stereo Power 8Ω	2*650W
Stereo Power 4Ω	2*1050W
Stereo Power 2Ω	2*1300W
BTL 8Ω	1950W
BTL 4Ω	2600W
Frequency Response	5--50K±0.5dB
THD+N	<0.05%@8Ω 1kHz
S/N Ratio	>102dB
Slew Ratio	50V/u S
Damping Factor	>400
Crosstalk	>65dB@8Ω 1kHz
Input Impedance	20KΩ(Balance)/10KΩ(Unbalance)
Input Sensitivity	1V
Protect	Overheat short circuits,DC,limit and--softstart,Output relay-Zero Current Switch,Intellctual Clip limiter
Height	2U
Gross Weight	26KG
Dimensions	575×570×158MM
