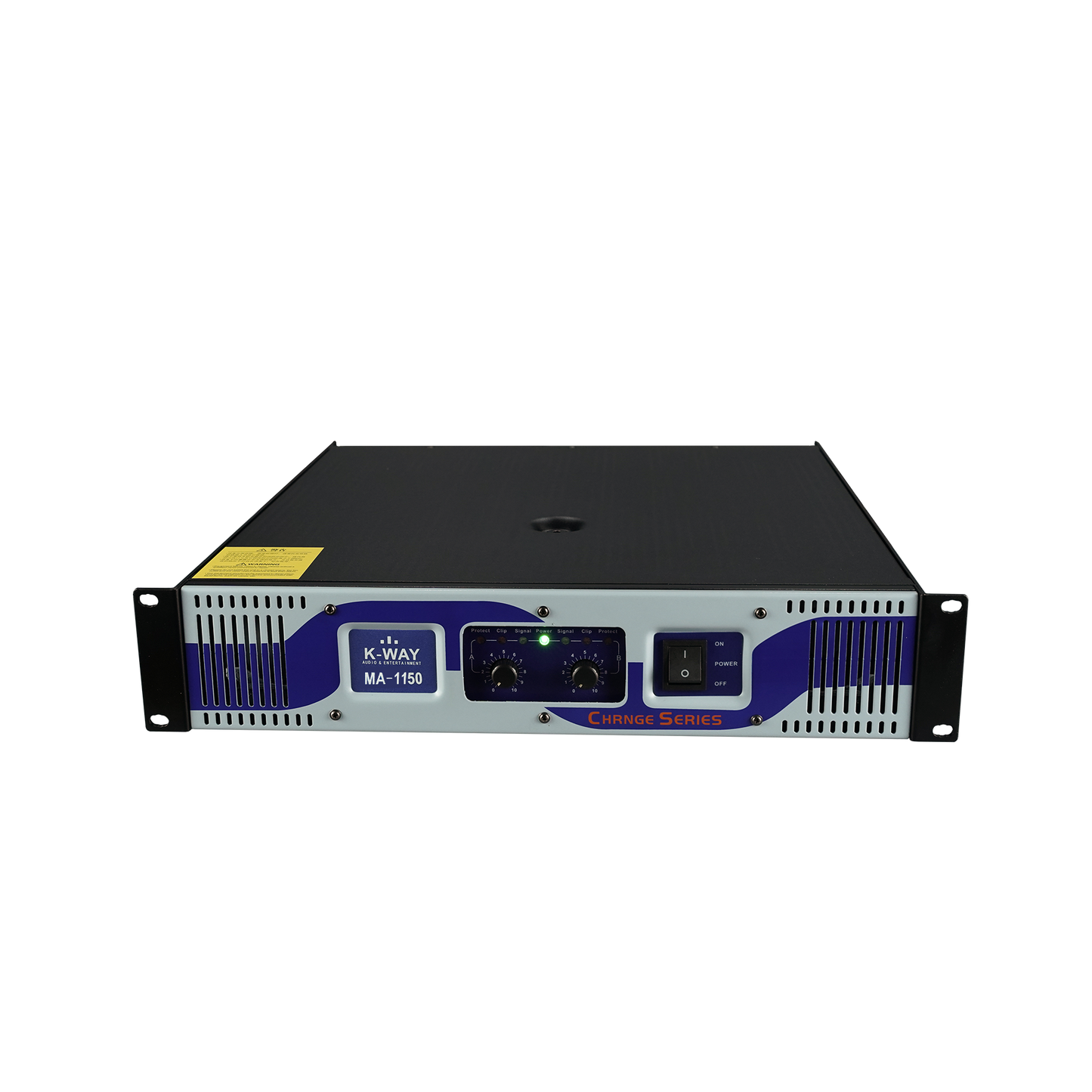

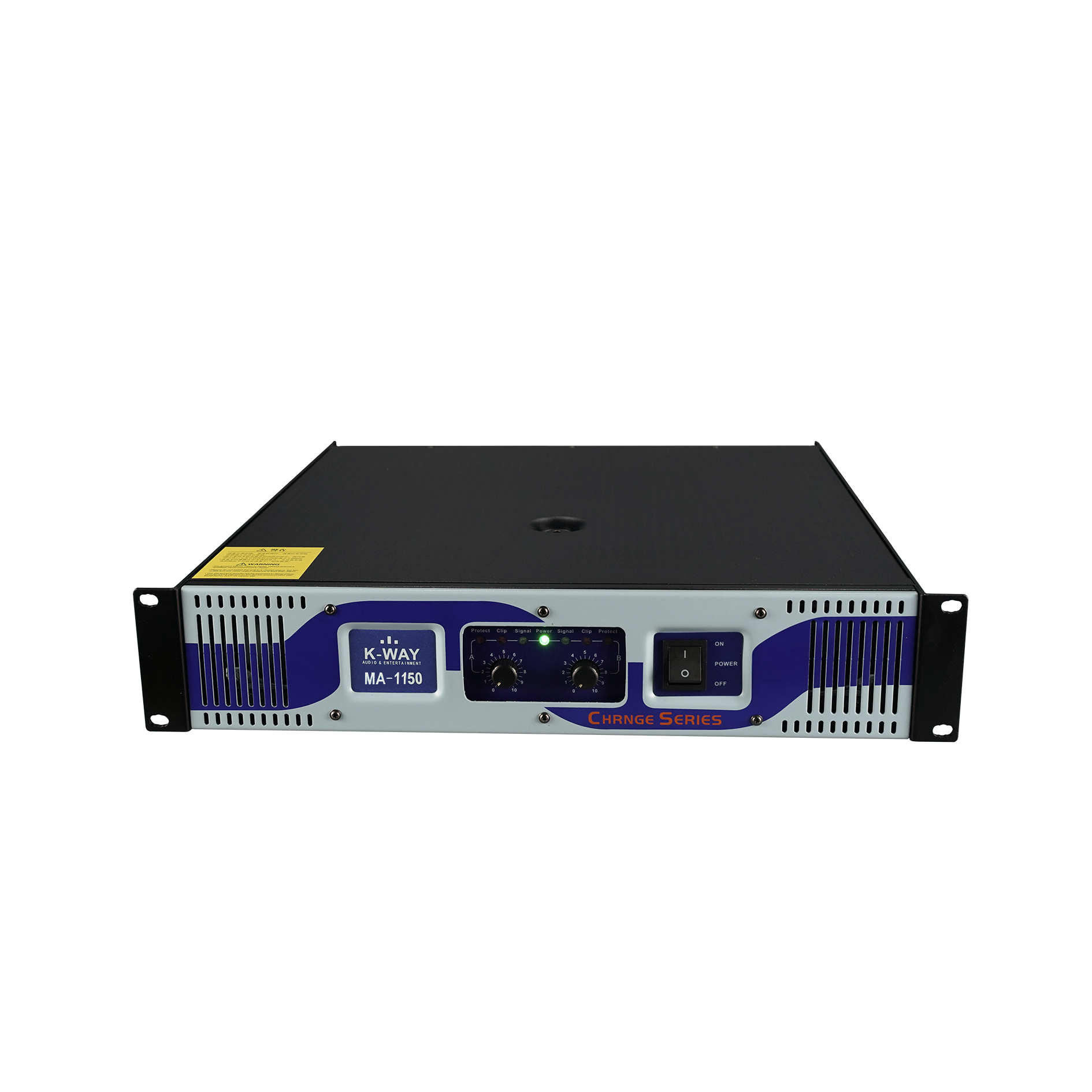

KWAY MA-1150 POWER AMPLIFIER
KWAY MA-1150 POWER AMPLIFIER
MA- SERIES power amplifier has four different models, they are rated from 530 watts (8 ohms) to 1350 watts (8 ohms). All models are employing the mature J circuit design and using high-quality and reliable components. MA-series amplifiers have a complete and high-speed protection system in the case of overheating, overloading, DC output, etc. They are designed to provide a great solution for all kinds of power requirements. The high working efficiency and time-proof feature prove they are the most attractive amplification system for your outdoor events, disco, clubs, and other live applications.
| Model |
MA-1150
|
|
8Ω Stereo Power
|
2×1150W
|
|
4Ω Stereo Power
|
2×2000W
|
|
8Ω Bridged Mono
|
4000W
|
| Input Impedance |
20KΩbalance/10KΩunbalance
|
|
Frequency response
|
20Hz-20kHz |
|
THD+N(Rated Power,4Ω/KHz)%
|
0.05%
|
|
Signal Noise Ration(dB)
|
＞80dB
|
|
Dampling factor(8 ohm 1k)
|
＞200
|
|
Slew Rate
|
＞13v/μs
|
|
Input Sensitivity
|
32dB
|
| Output Topology |
Class J
|
|
Input Connectors
|
3pin-XLR/RCA/TRS
|
|
Amplifier Protection
|
DC/Short/Temp/VHF/Limit/Softstar
|
|
Output Connectors
|
Speakon &touch-proof binding posts
|
|
Dimensions
|
483×411×89mm
|
|
Package dimensions
|
595×585×170mm
|
|
Net Weight
|
20.5Kg
|
|
Gross weight
|
24Kg
|
