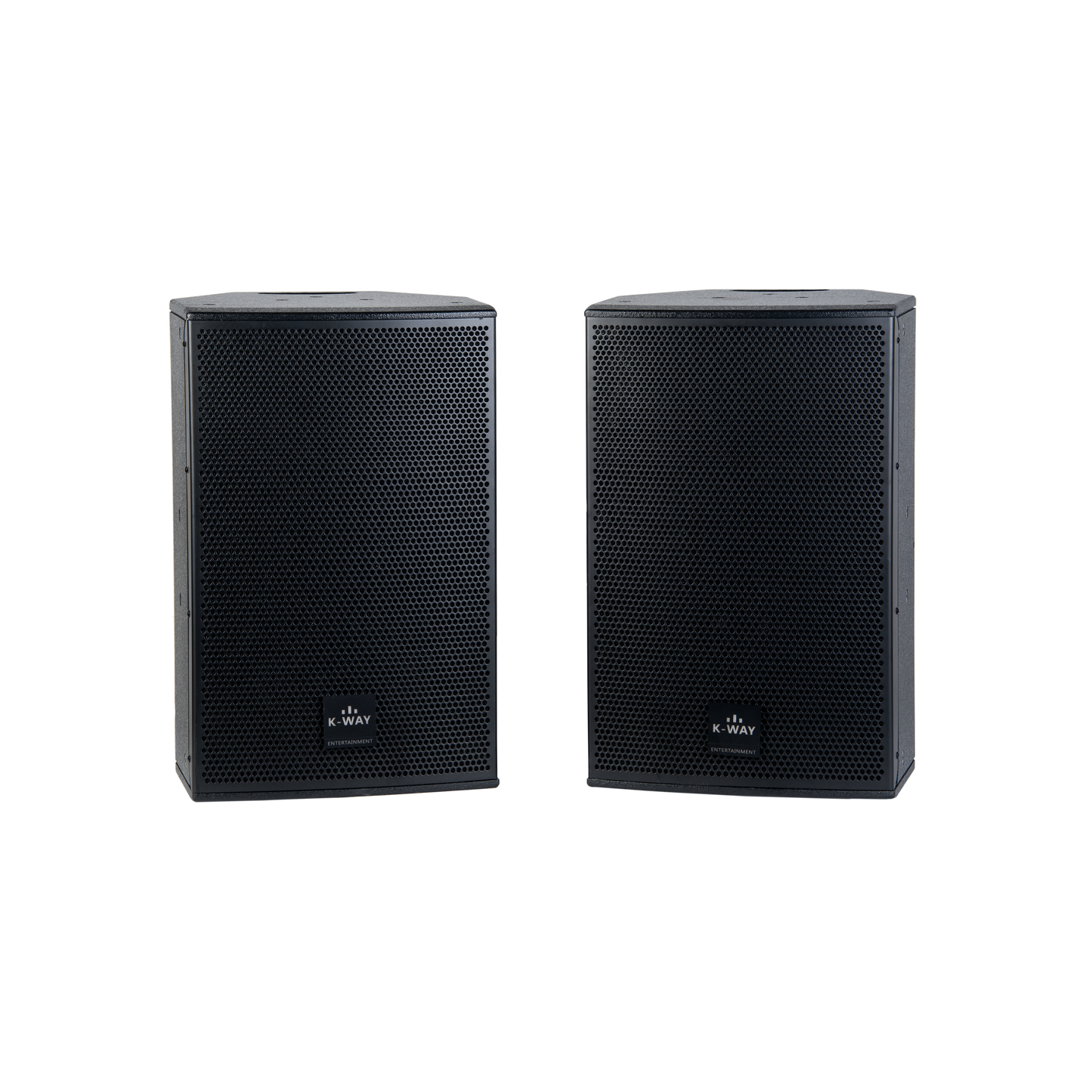

KWAY SPEAKER SERIES @ VH-10 1PAIR

FEATURES:

Suitable for luxury KTV rooms, function rooms, dance halls, bars main speakers or secondary speakers
Can be made small and medium sized speaker system tonic or stadiums, movie theaters and other big occasions auxiliary speakers.
75mm voice coil aluminum cone woofer frame classic design
3-point hanging, hanging card package box hanger screw still hanging way: simple, quick installation

Model	VH-10
LF Driver	10"（304mm),3"（75mm） voice coil woofe
HF Driver	1"(25mm) exit 1.75"(44mm) Diaphragm Hi drive
Frequency （-3dB）	50-18000Hz
Frequency （-10dB）	44-20000Hz
Coverage (-6dB）	90°horizontal, 60°vertical
Sensitivity(1W/1m)	97dB /(1W/1m)
SPL program	120dB
SPL Peak	126dB
Impedance	8Ω
Input power	350W（Rated Power）/700W（Peak Power）
Recommended Amplifier	Pl7620
Frequency point	1.6 Hz Extraposition Frequency
Cabinet	15mmplywood
Hanging Angles	15 pcs of M8 Hanging Screw Holes
Surfacing	Black Granular Recin
Veil	Moulde sted circular lattice
Connectors	2 x Nl4
PIN CONNECTIONS	FR+,- : 1+,1-
Product Dimension(WXDXH)	537 × 300 × 340 mm
Net Weight	16kg
Gross Weight	15.6kg
