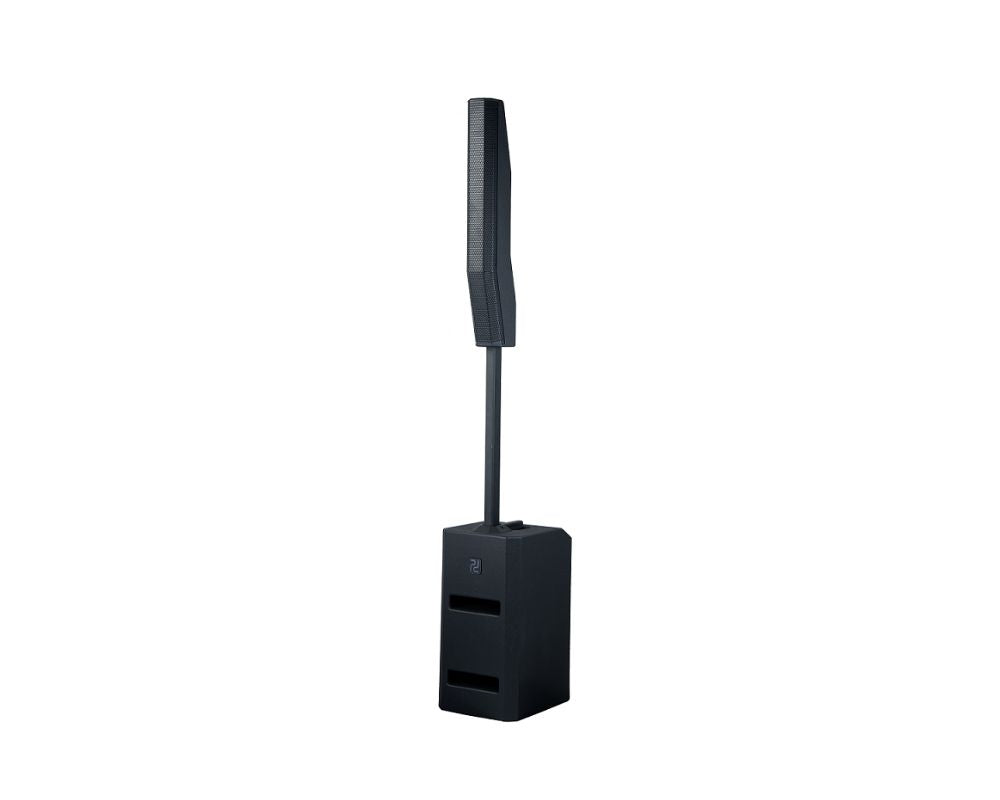

KWAY CONCERT PRO @ SC1003 COLUMN SPEAKER

The SC1003 is an active Column Speaker that features 8*3.5"FULL-RANGE" TRANSDUCERS and a 10" KING EXCURSION SUBWOOFER, unique phase plug design brings the speaker a 140 degree vertical covergae. Light weight cool running Class D AMP could output 1800WATTS PEAK POWER. SC SERIES has both INSTALL VERSION and PORTABLE VERSION

Specifications:
https://youtu.be/QMacSHnvbzA
Model: SC1003

Frequency response:                45hz-20khz (-3db)

Low frequency design:            10"2 way bandpass

Mid-high design:                     8X3.5" line source with phase plug

LF Driver:                                 10" with 38mm coil long excursion woofer

HF Driver:                                3.5" with 25mm coil full range

Sensitivity:                               LF:92dB;HF94dB

Max. SPL:                                 12dB

Coverage:                                H140*V40

Amp Power:                             500 + 500 WRMS

Crossover:                                4th/200hz DSP

Finish:                                      Plywood with Polyurea

Sub dimensions:                      W103 H760 D176mm

Total Height:                            W315 H620 D410mm

Sub net weight:                       18KG
