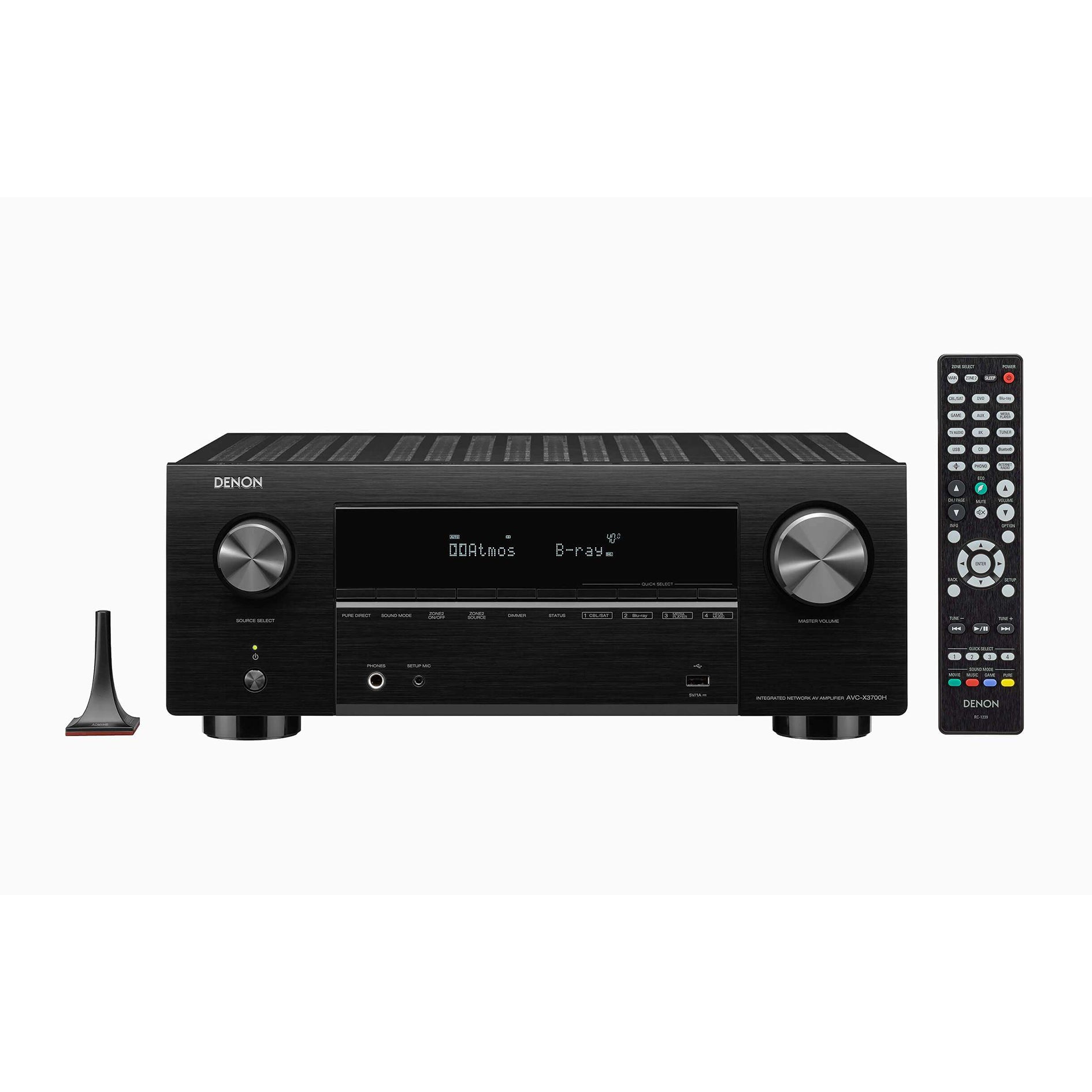

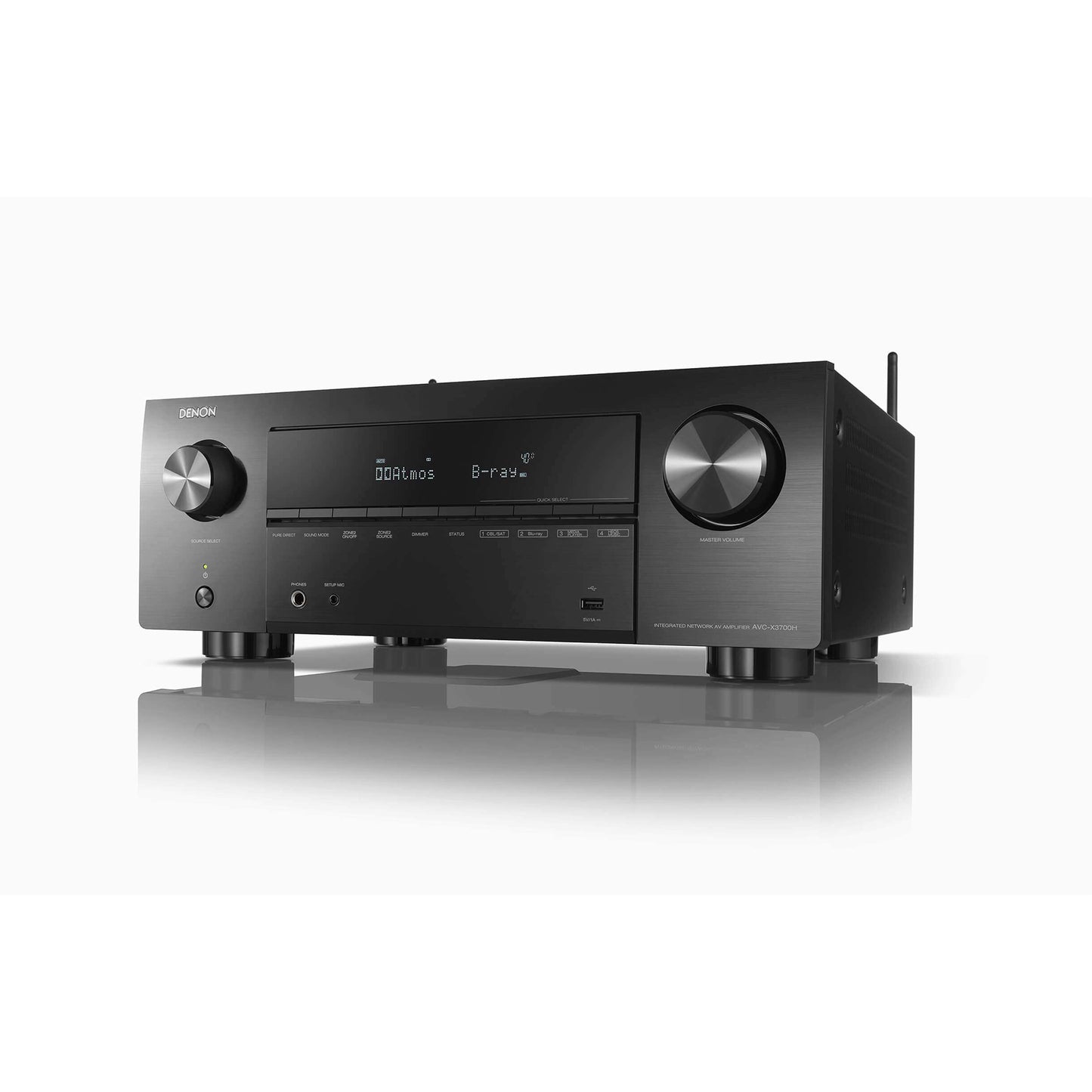

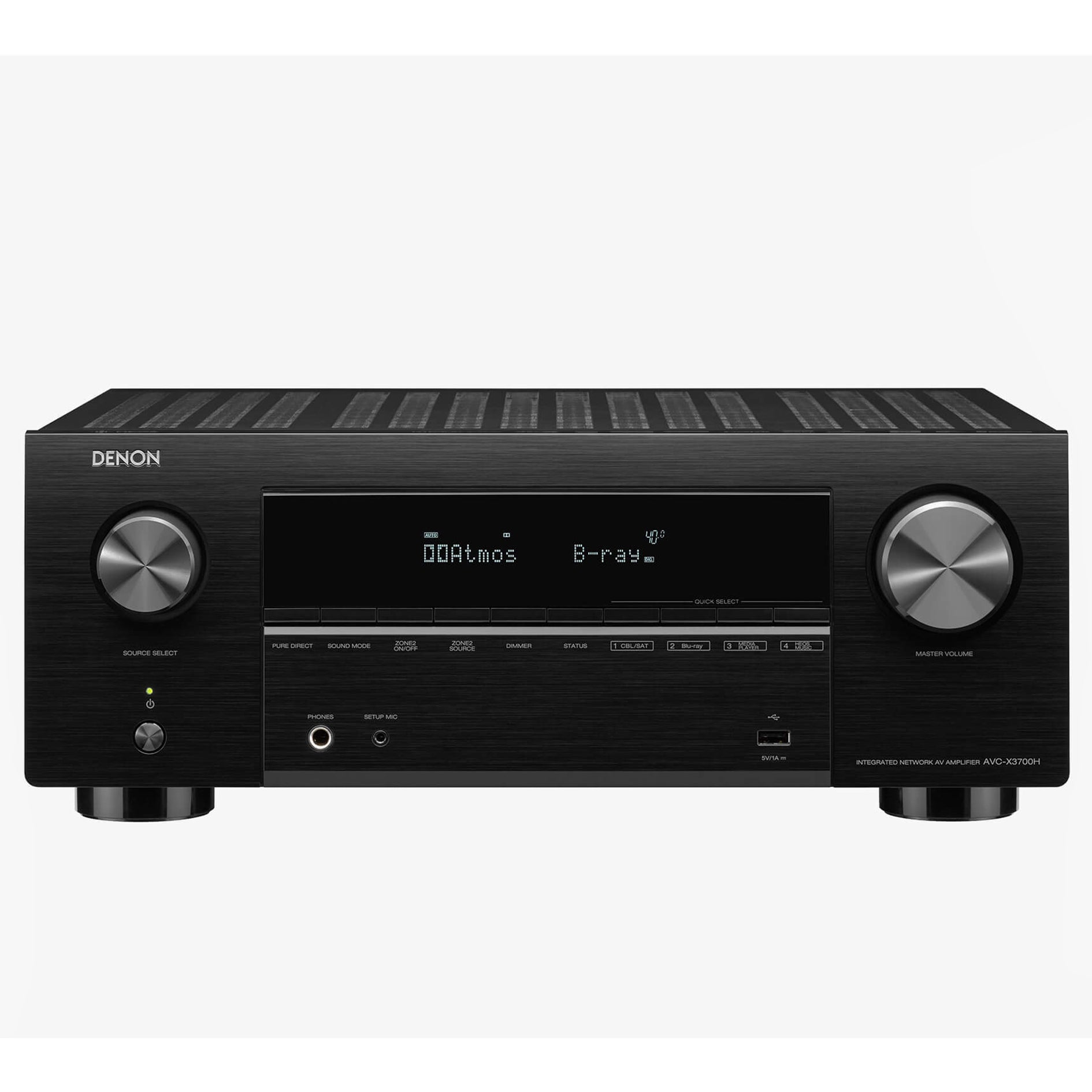

DENON AVC-X3700H BKE2

9.2ch 8K AV Amplifier with 3D Audio and HEOS Built-in

Denon AVC-X3700H 9.2 channel 8K AV amplifier with 180W per channel that fully supports 3D audio formats like Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:X™ and IMAX® Enhanced, as well as the latest HDMI specifications such as 8K/60Hz, 4K/120Hz pass-through and upscaling, VRR, ALLM, Dynamic HDR, HDR10+ and eARC support.

4K TV’s, upgraded

Get the most out of your 4K TV until you upgrade to 8K.
9-channels of
entertainment

Drive your entire home theatre system with 9 channels of power.
Latest HDMI
and eARC

Enjoy your favourite movies, shows, and games with the best picture and audio quality available.
Full 3D audio
support

Immerse yourself in 3D audio and enjoy your entertainment in whatever speaker configuration you’d like.

TECHNICAL SPECIFICATIONS

Multichannel Surround

DTS HD Master / DTS:X	Yes / Yes
DTS:X Pro	No
DTS Neo:X / DTS Neural:X	No / Yes
DTS Virtual:X	Yes
Dolby TrueHD / Dolby Atmos	Yes / Yes
Dolby ProLogic II / Dolby Surround	No / Yes
Dolby Height Virtualization	Yes
Front Wide Speakers: Dolby / DTS	No
Auro 3D	No
IMAX Enhanced	Yes
MPEG-H	No
Multichannel Stereo	Yes
Max Number of Processing (Preamp) Channels	11.2

Sound Enhancements

Mono Block Power Amp Construction	No
Discrete Power Amplifier	9
110th Anniversary Audio Tuning	No
Iron diecast feet	No
Copper plated transformer base	No
Premium speaker terminals	No
All black interior	No
D.D.S.C. HD Digital	No
Pure Direct	Yes
High Grade Audio Components	Yes
Gold Plated RCA Terminals	No
Clock Jitter Reducer	No
Alpha Processing	No
Audyssey	MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume	Yes / Yes
Audyssey LFC	Yes
Audyssey APP Support	Yes
Speaker Setup Presets	2
Compressed Audio Restorer	Yes

Network

HEOS Multiroom and Streaming	Yes
Lossy Formats: MP3 / WMA / AAC	Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV	Yes / Yes / Yes
DSD Audio Streaming	up to DSD5.6
FLAC HD 192/24	Yes
WAV 192/24	Yes
ALAC 192/24	Yes
Gapless playback	Yes (FLAC, WAV, ALAC, DSD)
AirPlay 2	Yes
Roon Tested	Yes
Internet Radio	TuneIn
Spotify Connect* / Tidal* / Deezer* / others *	Yes / Yes / Yes / Yes
Amazon Prime Music* / Pandora*	Yes / Yes
Compatible with Remote APP for Smart Phones	Android / iOS
Compatible with Remote APP for Tablets	Android / iOS/Amazon Kindle
Ethernet Ports	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth Headphone transmission	Yes

HDMI

HDMI Inputs: Back / Front	7 / 0
HDCP2.3 support	Yes
HDMI Outputs: Main / Zone	2 / 1
HDMI max Resolution (8k / 4k)	8k/60 - 4k/120**
Video Conversion Analog -> HDMI	No
HDMI to HDMI Scaling	up to 8K 60/50
HDMI: 8K / 4K / CEC / eARC	Yes / Yes / Yes / Yes
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG	Yes / Yes / Yes / Yes
HDMI: ALLM / QMS / QFT / VRR	Yes / Yes / Yes / Yes
HDMI pass-though in standby mode	Yes
DSD Audio Capability	Yes

Multi-room CI

HEOS Multiroom integrated	Yes
TV Sound grouping	Yes
Multi-Room Zones	2
Main room multichanel audio - Zone stereo downmix	Yes
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog	Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout	Yes / Yes
Zone HDMI Output from HDMI Source	Yes
Webbrowser Setup	Yes
IP Control / RS232 Control / Web Control / App Control	Yes / Yes / Yes / Yes
Remote In / Out	Yes / Yes
DC Trigger Output	1

Others

Voice Control - Works with Amazon Alexa	Yes
Voice Control - Google Assist / Apple Siri	Yes / Yes
Voice Control - Microphone built-in	No
Auto Speaker Setup by Microphone	Audyssey MultEQ XT32
FL Display	1 line
Graphic User Interface - GUI	Advanced
ISF Certification	Yes
GUI Languages	9
Setup Assistant	Yes
Quick Select Plus / Quick Select	Yes / No
Firmware Update by: Network / USB	Yes / Yes
Variable Cross Over	Yes
Optimized Bass Redirection	Yes
Bass Sync	No
ECO Mode	Yes
Auto Power Off	Yes
Sleep Timer	Yes

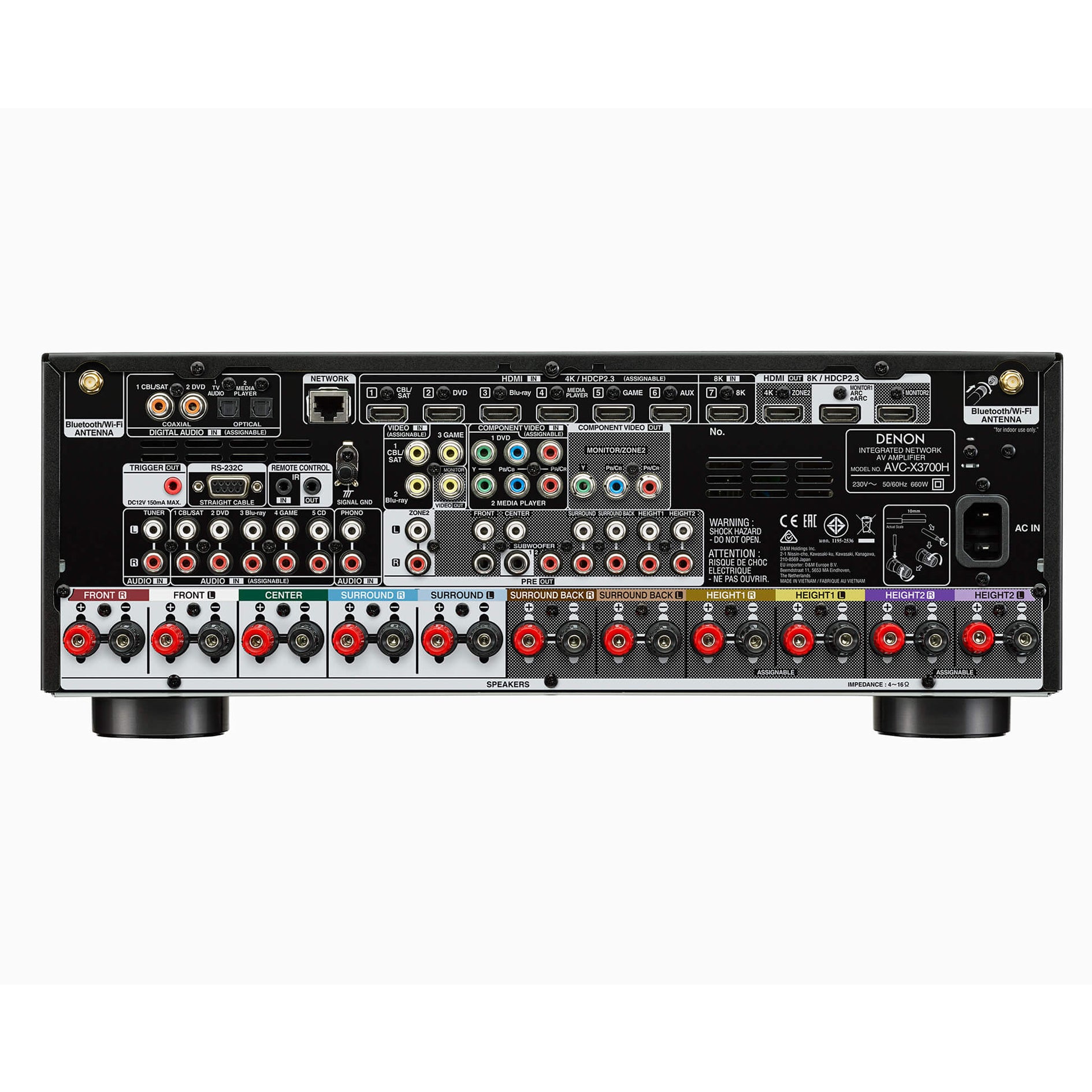

Inputs Outputs

Composite In / Out	3 / 1
Component In / Out	2 / 1
HDMI In / Out	7 / 3
Multi-room Video Out: Video / HDMI	No / Yes
Analogue In/out	6 / No
Phono (MM) In	Yes
Digital In: Optical / Coaxial	2 / 2
Multi-room Out: Analog / Digital	1 / No
Multichannel Preout	Yes (11.2)
Subwoofer Out	2 (independent)
7.1 Multichannel Input	No
Speaker Terminal: Gold Plated Screw / Regular Screw	No / Yes
Number of Speaker Terminals	11
Speaker A / B	assignable
Bi-amp Drive	assignable
Multi-Room Speaker Terminal	assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB	No / No / No / Yes / Yes
USB Audio / Made for iPod / Made for iPhone	Yes / AirPlay / AirPlay
FM Tuner with RDS	No

Specifications

Number of Power Amps	9
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)	105 W
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)	No
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)	135 W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive)	180 W

General

Available colours: Black / Premium Silver	Yes / No
Metal Front Panel	No
System Remote Control	RC-1239
Pre-programmed / Learnable / LCD Display	No / No / No
Power Consumption in W	660
Power Consumption No-Sound (ECO On / Off) in W	45 W / 80 W
Standby Consumption in W	0.1
CEC Standby Consumption in W	0.5
Network Control On Consumption in W	3.7
Maximum Dimensions Antenna: Horizontal: (W x D x H) in mm Antenna: Vertical: (W x D x H) in mm W/O Antenna: (W x D x H) in mm	434 x 389 x 167 ( 434 x 389 x 236 ) 【 434 x 379x 167 】
Weight in kg	12.5
Carton Maximum Dimensions (W x D x H) in mm	519 x 478 x 242
Carton Weight (inc. product) in kg	15.1
