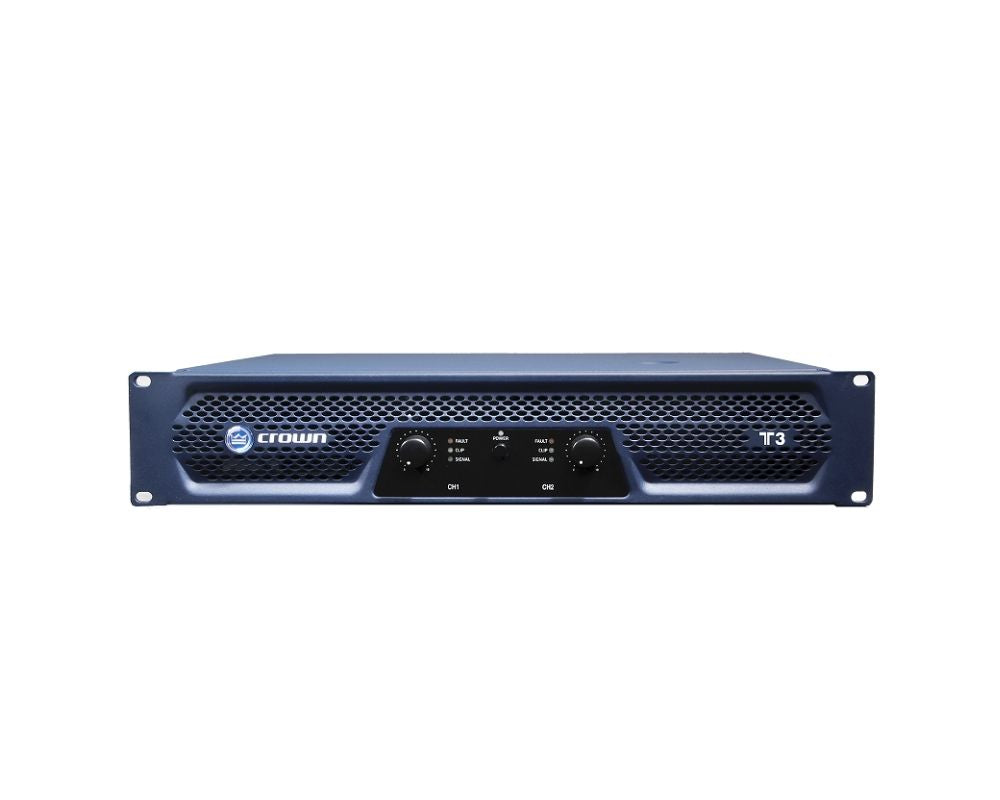

Crown T3 Power Amplifier
Crown T3 Power Amplifier
Crown T3 Power Amplifier

Crown T3 Power Amplifier

Regular price RM2,299.00 MYR Sale

The Crown T series are professional-grade power amplifiers designed for entertainment venues, movie theaters, mobile performances, conference rooms and other commercial venues. Their compact design makes them perfectly suited for mobile use and entertainment venues with limited space.

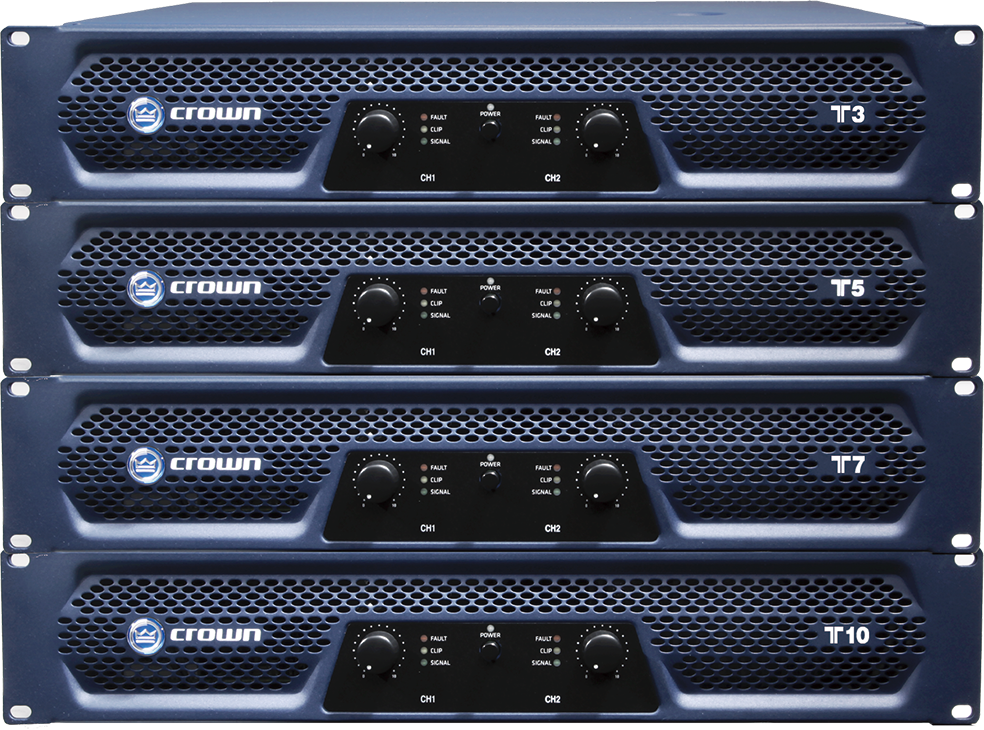

The four T series amplifier models (T3, T5, T7 and T10) are based on professional Crown technologies, with a simple and efficient amplification circuit, and an upgraded heat dissipation system designed to ensure professional performance day after day. For over 60 years Crown has focused on power amplifier technology research and innovation, and with the T series, Crown delivers a user-friendly installation with professional audio quality.



Frequency Response 20Hz - 20kHz, +0/-1dB
Total Harmonic Distortion (THD) < 0.5%, 20 Hz - 20kHz
Intermodulation Distortion = / < 0.35% (from full rated output to -30dB)
Conversion Rate >10V/us
Voltage Gain 31dB
Damping Factor > 200 (8Ω, 10 Hz - 400 Hz)
Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted) > 100 dB
Crosstalk -75dB at 1kHz, -59dB at 20kHz
Input Sensitivity 0.775V or 1.4V (rated power 8Ω)
Input Impedance 20kΩ Balanced, 10kΩ Unbalanced
Input Connectors Balanced XLR and one unbalanced RCA per channel

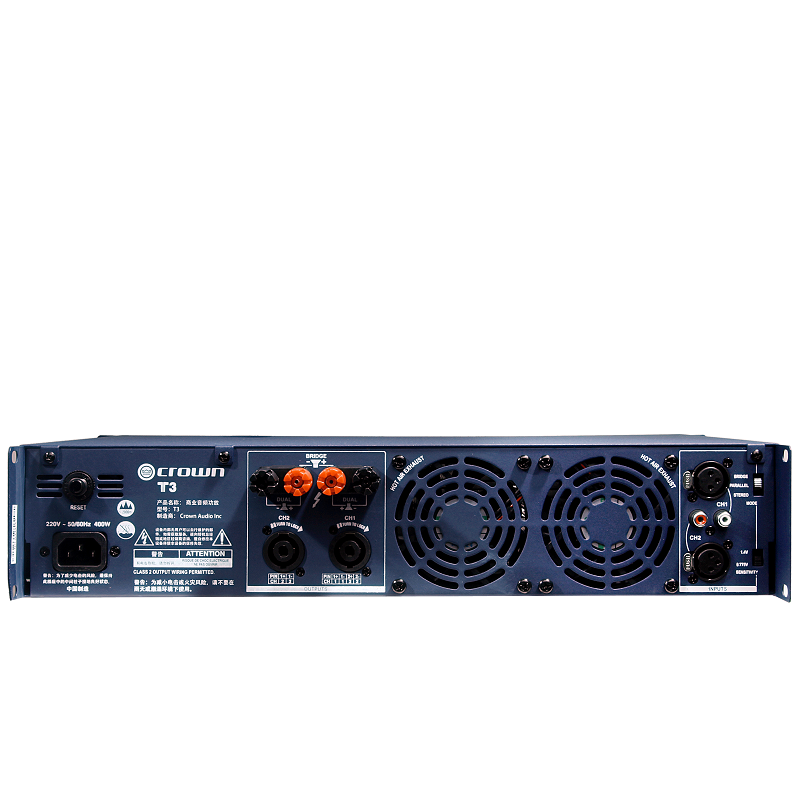

Output Connectors 4-POLE Speakon® and a pair of binding posts per channel
Front Panel Components Power switch, channel gain control
Rear Panel Components Output mode switch: stereo, parallel, bridge, Input sensitivity switch: 0.775V or 1.4V
Power Indicator Blue and green two-color LED
Signal Indicator One green LED per channel
Clip Indicator One yellow LED per channel
Fault Indicator Red LED per channel , indicating that the channel is closed
Power cables Plug : 10A, 250V, Wire : CCC 3x1.5mm 2
Protection Protection against short circuit, no load, on / off noise, radio interference protection circuit
Ventilation Air convection mechanism
Cooling Internal air is forced to dissipate heat, fan cooling, rapid adjustment, temperature protection
Dimensions (w x h x d) 19” x 3.46” x 12.45” (482 mm x 88 mm x 316.4 mm)
Net Weight 28.0 lb (12.7 kg)
Shipping Weight 32.4 lb (14.7 kg)
