CROWN T10 Power Amplifier
CROWN T10 Power Amplifier
The Crown T series are professional-grade power amplifiers designed for entertainment venues, movie theaters, mobile performances, conference rooms and other commercial venues. Their compact design makes them perfectly suited for mobile use and entertainment venues with limited space.

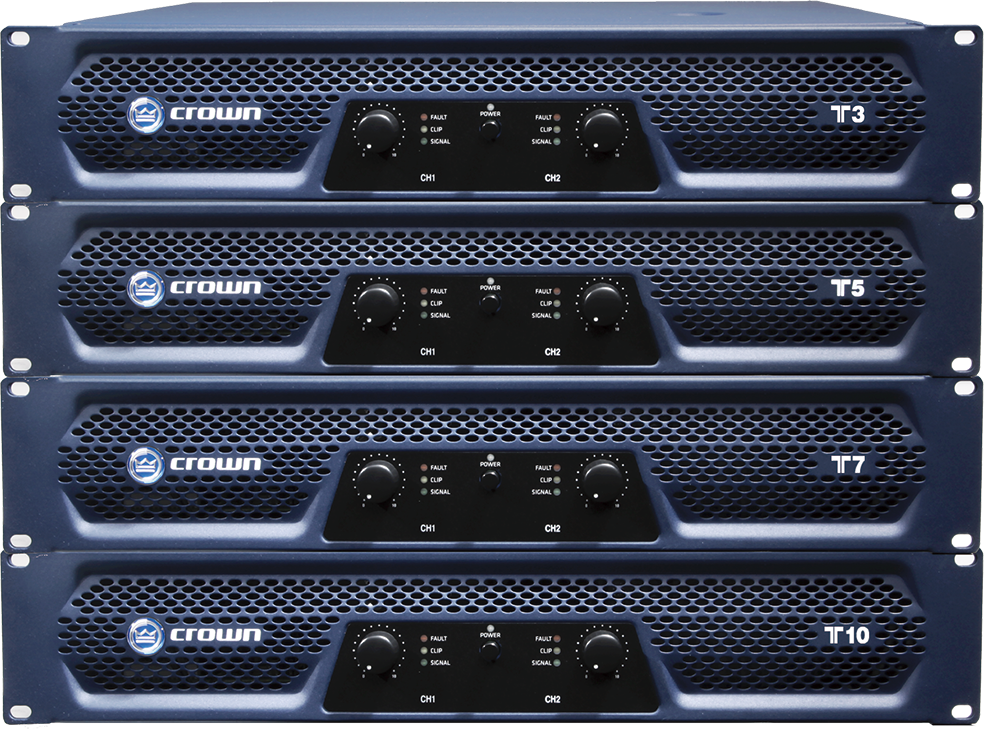

The four T series amplifier models (T3, T5, T7 and T10) are based on professional Crown technologies, with a simple and efficient amplification circuit, and an upgraded heat dissipation system designed to ensure professional performance day after day. For over 60 years Crown has focused on power amplifier technology research and innovation, and with the T series, Crown delivers a user-friendly installation with professional audio quality.
| Minimum guaranteed power | T3 | T5 | T7 | T10 |
|---|---|---|---|---|
| 1 kHz, 0.5% THD | ||||
| Stereo, 4Ω per channel | 450W | 750W | 950W | 1350W |
| Stereo, 8Ω per channel | 330W | 500W | 675W | 1000W |
| Bridged mono, 8Ω | 900W | 1500W | 2000W | 2700W |
Specifications
| Frequency Response | 20Hz - 20kHz, +0/-1dB |
| Total Harmonic Distortion (THD) | < 0.5%, 20 Hz - 20kHz |
| Intermodulation Distortion | = / < 0.35% (from full rated output to -30dB) |
| Conversion Rate | >10V/us |
| Voltage Gain | 36dB |
| Damping Factor | > 200 (8Ω, 10 Hz - 400 Hz) |
| Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted) | > 100 dB |
| Crosstalk | -75dB at 1kHz, -59dB at 20kHz |
| Input Sensitivity | 0.775V or 1.4V (rated power 8Ω) |
| Input Impedance | 20kΩ Balanced, 10kΩ Unbalanced |
| Input Connectors | Balanced XLR and one unbalanced RCA per channel |
| Output Connectors | 4-POLE Speakon® and a pair of binding posts per channel |
| Front Panel Components | Power switch, channel gain control |

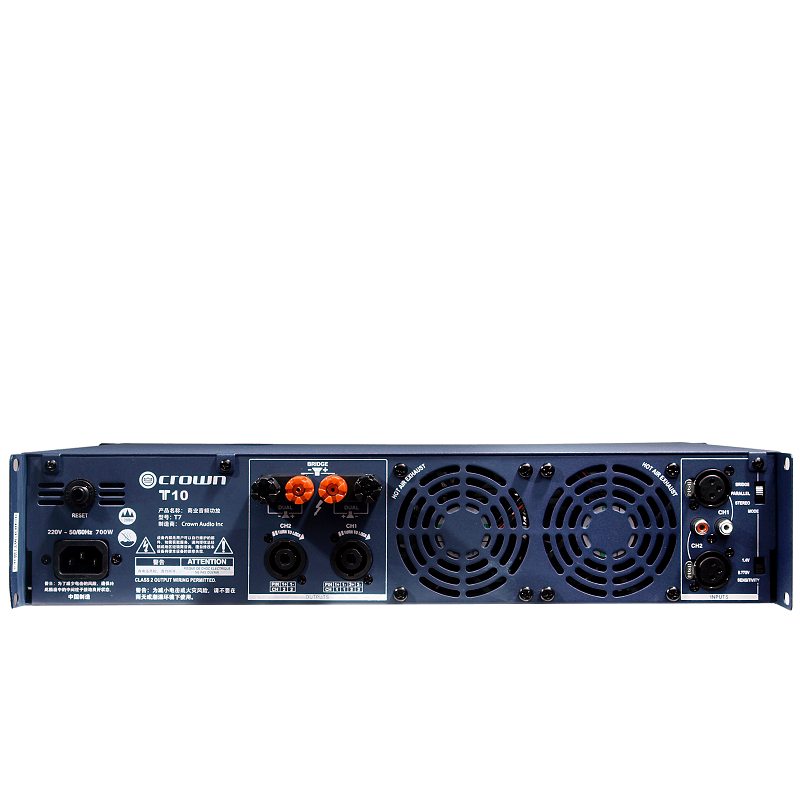

| Rear Panel Components | Output mode switch: stereo, parallel, bridge, Input sensitivity switch: 0.775V or 1.4V |
| Power Indicator | Blue and green two-color LED |
| Signal Indicator | One green LED per channel |
| Clip Indicator | One yellow LED per channel |
| Fault Indicator | Red LED per channel , indicating that the channel is closed |
| Power cables | Plug : 10A, 250V, Wire : CCC 3x1.5mm 2 |
| Protection | Protection against short circuit, no load, on / off noise, radio interference protection circuit |
| Ventilation | Air convection mechanism |
| Cooling | Internal air is forced to dissipate heat, fan cooling, rapid adjustment, temperature protection |
| Dimensions (w x h x d) | 19” x 3.46” x 14.5” (482 mm x 88 mm x 369 mm) |
| Net Weight | 43.0 lb (19.5 kg) |
| Shipping Weight | 47.4 lb (21.5 kg) |
